Shop ELKAY

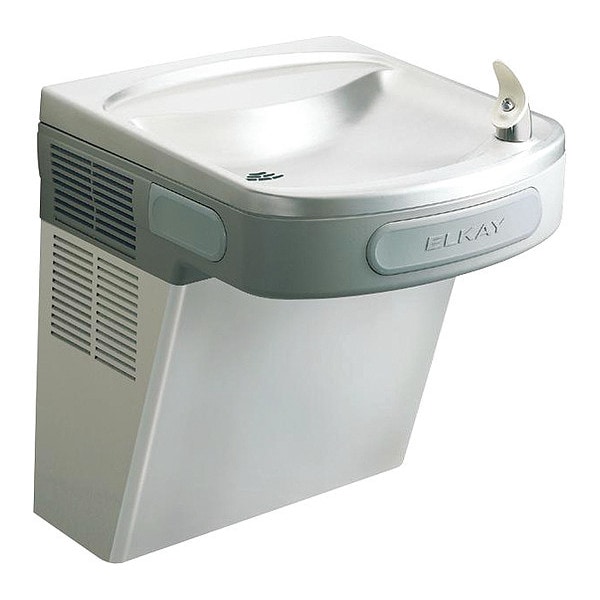

On-Wall Single Drinking Fountain, 1 Level, 18.375" D, 19.8125" H, 19" W

  • Mfr # LZS8S

  • Zoro # G1108950

product price:  $870.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
ADA Compliant
Number of Levels
1
Voltage
115V/60Hz
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LZS8S
Zoro #
G1108950
UPC #
094902246994
Country of Origin
United States

Dimensions

Height
19.8125"
Width
19 in
Depth
18.375"
Overall Height
19 13/16 in
Overall Width
18 3/8 in
Mounting Hole Diameter
7/16 in
Drain Outside Diameter
1 1/4 in
Manufacturer Warranty Length
12 mo, 5 yr Limited
Overall Depth
18 3/8 in
Inlet Tube Outside Diameter
3/8 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
ADA Compliant
Number of Levels
1
Voltage
115V/60Hz
Material
Stainless Steel
Color
Stainless Steel
Refrigerant
R-134a
Full Load Amps
5A
Operation
Push Bar Fountain
Item
Drinking Fountain
Standards
ADA, ASME A112.19.3/CSA B45.4, CAN/CSA C22.2 No. 120, ICC A117.1, NSF 372 (Lead-Free), NSF 401, NSF 42, NSF 53, NSF 61, UL 399
Includes
Filter, Water Cooler
Vandal Resistant
Not Vandal Resistant
Cold Water Capacity
8.0 gph
Features
Attractive Contemporary Design Matches Modern Architecture, Exclusive Fastenerless Integrated Drain Reduces Debris Accumulation and is Easy to Clean, Hermetically Sealed Refrigeration System Provides Chilled Water to Satisfy Thirst
Housing Material
Stainless Steel
Antimicrobial
Antimicrobial
Housing Color
Gray
Power Source
Electric Corded
Includes Water Filter
Water Filter Included
Station Type
Single Fountain
Full Load Current
5 A
Cooling Capacity
8 gph
Includes Pet Bowl
Pet Bowl Not Included
Fountain Actuation
Front Pushbar/Side Pushbar
Environment
Indoor
Bi-Level Field Adjustable
Not Bi-Level Field Adjustable
Temperature Adjustment
Factory Set but Adjustable
Refrigeration
Refrigerated
Power Consumption
370 W
Number of Bubblers
1
Minimum Supply Line Pressure
20 psi
Product Weight
54 lb
Operating Voltage
115V AC
Maximum Cold Water Temperature
50 Degrees F
Housing Finish
Plain
Minimum Constant Stream Pressure
20 psi
Maximum Constant Stream Pressure
105 psi
Refrigerant Type
R134A
Number of Mounting Holes
3
Chiller Compatible
Chiller Compatible
Filter Status Indicator
Filter Status Indicator Not Included
Filter Location
Bottom Panel Access
Resistance Properties
Corrosion-Resistant

Description

The Elkay EZ models are our most popular water cooler series. These models offer easy-touch pushbar or sensor-activated controls and come standard with a Flexi-Guard Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.
