  5. On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W

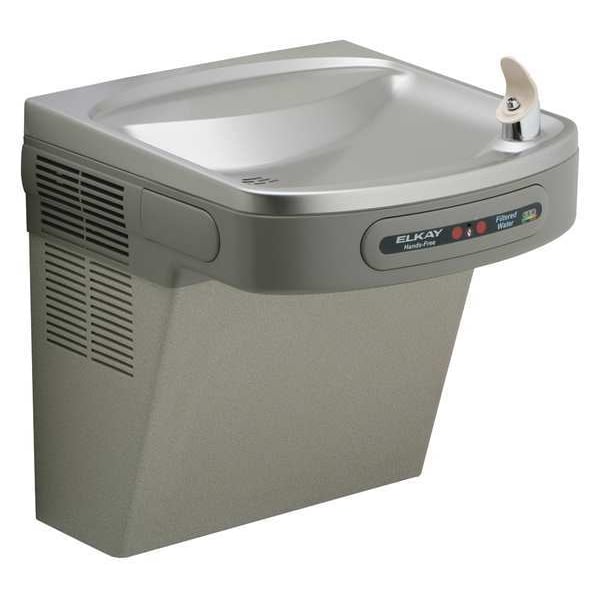

Elkay On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W LZO8L - main
Shop ELKAY

On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W

  • Mfr # LZO8L

  • Zoro # G0601675

product price:  $1,233.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LZO8L
Zoro #
G0601675
UPC #
094902427508
Country of Origin
United States

Dimensions

Depth
19 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Width
18 3/8 in
Height
19 13/16 in
Overall Height
19 7/8 in
Overall Width
18 3/8 in
Overall Depth
19 in
Drain Outside Diameter
1 1/4 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Mounting Hole Diameter
7/16 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
Color
Gray
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Touchless Fountain
Item
Single Drinking Fountain
Inlet
3/8 in OD
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Includes
Filter
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Dispenser Design
Wall
Drain Connection
1 1/4 in
Dispenser Operation
Electronic Sensor
Cold Water Capacity
8 gph
Refrigerated / Non-Refrigerated
Refrigerated
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Water Temp.
50 Degrees F
Vandal Resistant
No
Features
Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System
Bi-Level Field Adjustable
No
Full Load Current
5 A
Antimicrobial
No
Fountain Actuation
Sensor
Maximum Constant Stream Pressure
105 psi
Housing Finish
Vinyl Clad
Cooling Capacity
8 gph @ 50 Degrees F
Power Consumption
370 W
Operating Voltage
115V AC
Number of Bubblers
1
Includes Water Filter
Yes
Environment
Indoor
Number of Mounting Holes
9
Refrigerant Type
R134A
Refrigeration
Refrigerated
Includes Pet Bowl
No
Station Type
Single Fountain
Housing Color
Gray
Temperature Adjustment
Factory Set but Adjustable
Compressor Horsepower
1/5 hp
Minimum Constant Stream Pressure
20 psi
Product Weight
54 lb
Power Source
Electric Corded
Includes Back Panel
No
Maximum Cold Water Temperature
50 Degrees F

Description

The Elkay EZ models are our most popular water cooler series. These models offer easy-touch pushbar or sensor-activated controls and come standard with a Flexi-Guard Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
