  5. On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W

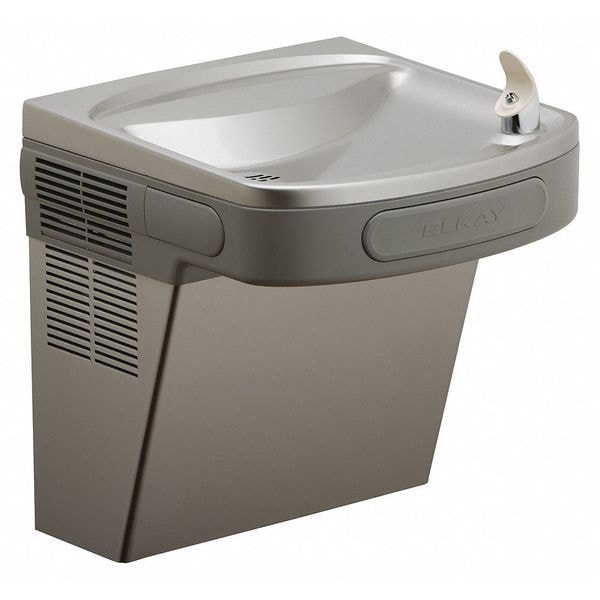

Elkay On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W LZS8L - main

On-Wall Single Drinking Fountain, 1 Level, 19 in D, 19 13/16 in H, 18 3/8 in W

  • Mfr # LZS8L

  • Zoro # G0047525

product price:  $761.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LZS8L
Zoro #
G0047525
UPC #
094902247007
Country of Origin
United States

Dimensions

Depth
19 in
Width
18 3/8 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Height
19 13/16 in
Overall Height
19 7/8 in
Overall Width
18 3/8 in
Drain Outside Diameter
1 1/4 in
Mounting Hole Diameter
7/16 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
19 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
1
Voltage
115 V AC
Color
Gray
Refrigerant
R134A
Full Load Amps
5 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain
Item
Single Drinking Fountain
Refrigerated / Non-Refrigerated
Refrigerated
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Dispenser Design
Wall
Vandal Resistant
No
Compliance
Accessibility,Water Quality Including Lead, Electrical
Drain Connection
1 1/4 in
Cold Water Capacity
8 gph
Inlet
3/8 in OD
Water Temp.
50 Degrees F
Includes
Filter
Dispenser Operation
Front and Side Pushbar
Features
Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System
Number of Mounting Holes
3
Number of Bubblers
1
Housing Color
Gray
Includes Water Filter
Yes
Includes Pet Bowl
No
Power Consumption
370 W
Operating Voltage
115V AC
Product Weight
54 lb
Full Load Current
5 A
Power Source
Electric Corded
Temperature Adjustment
Factory Set but Adjustable
Housing Finish
Vinyl Clad
Maximum Constant Stream Pressure
105 psi
Compressor Horsepower
1/5 hp
Minimum Constant Stream Pressure
20 psi
Bi-Level Field Adjustable
No
Refrigerant Type
R134A
Maximum Cold Water Temperature
50 Degrees F
Minimum Supply Line Pressure
20 psi
Station Type
Single Fountain
Antimicrobial
No
Basin Material
Stainless Steel
Cooling Capacity
8 gph @ 50 Degrees F
Includes Back Panel
No
Fountain Actuation
Front Pushbar/Side Pushbar
Environment
Indoor
Refrigeration
Refrigerated

Description

The Elkay EZ models are our most popular water cooler series. These models offer easy-touch pushbar or sensor-activated controls and come standard with a Flexi-Guard Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
