  5. On-Wall Two-Level Drinking Fountain, 2 Level, 18 1/16 in D, 27 1/8 in H, 36 5/16 in W

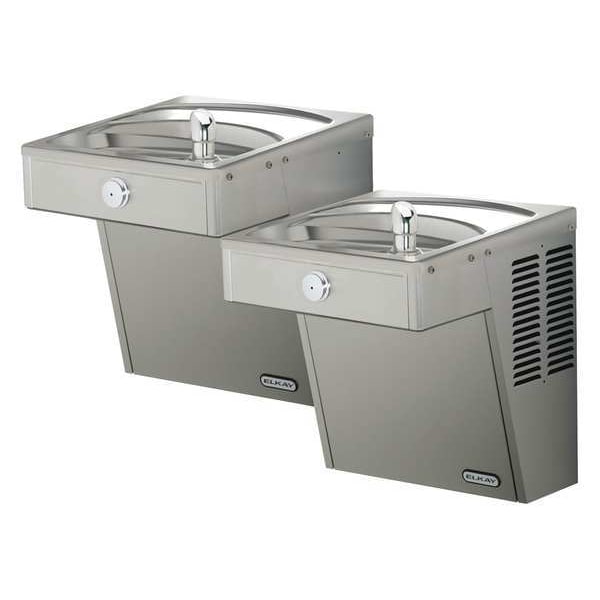

Elkay On-Wall Two-Level Drinking Fountain, 2 Level, 18 1/16 in D, 27 1/8 in H, 36 5/16 in W VRCTL8SC - main

On-Wall Two-Level Drinking Fountain, 2 Level, 18 1/16 in D, 27 1/8 in H, 36 5/16 in W

  • Mfr # VRCTL8SC

  • Zoro # G2985333

product price:  $2,125.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor/Outdoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VRCTL8SC
Zoro #
G2985333
UPC #
094902400471
Country of Origin
United States

Dimensions

Width
36 5/16 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Depth
18 1/16 in
Height
27 1/8 in
Overall Height
27 1/8 in
Overall Width
36 3/8 in
Drain Outside Diameter
1 1/2 in
Inlet Tube Outside Diameter
1/4 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
18 5/8 in
Mounting Hole Diameter
7/16 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor/Outdoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Material
Stainless Steel
Color
Silver
Refrigerant
R134A
Full Load Amps
5 A
Compressor HP
1/5 hp
Operation
Front Push Button
Item
Two-Level Drinking Fountain
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Dispenser Design
Wall
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Includes
Strainer
Drain Connection
1 1/2 in
Refrigerated / Non-Refrigerated
Refrigerated
Cold Water Capacity
8 gph
Vandal Resistant
Yes
Dispenser Operation
Front Push Button
Water Temp.
50 Degrees F
Inlet
3/8 in OD
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 61, UL 399
Features
Provides Chilled Water, Tamper-Resistant Fasteners
Maximum Cold Water Temperature
50 Degrees F
Fountain Actuation
Front Push Button
Includes Water Filter
No
Power Source
Electric Corded
Housing Color
Gray
Maximum Constant Stream Pressure
105 psi
Housing Finish
Plain
Environment
Indoor, Outdoor
Number of Bubblers
1
Vandal Resistant Features
Vandal Resistant
Temperature Adjustment
Factory Set but Adjustable
Bi-Level Field Adjustable
Yes
Includes Pet Bowl
No
Minimum Constant Stream Pressure
20 psi
Refrigerant Type
R134A
Cooling Capacity
8 gph @ 50 Degrees F
Product Weight
94 lb
Housing Material
Stainless Steel
Refrigeration
Refrigerated
Compressor Horsepower
1/5 hp
Antimicrobial
No
Includes Back Panel
No
Number of Mounting Holes
6
Full Load Current
5 A
Station Type
Bi-Level Fountain
Operating Voltage
115V AC

Description

Vandal-resistant wall-mount water cooler features tamper-resistant pushbutton activation and one-piece bubbler.
