  5. On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 in H, 36 1/4 in W

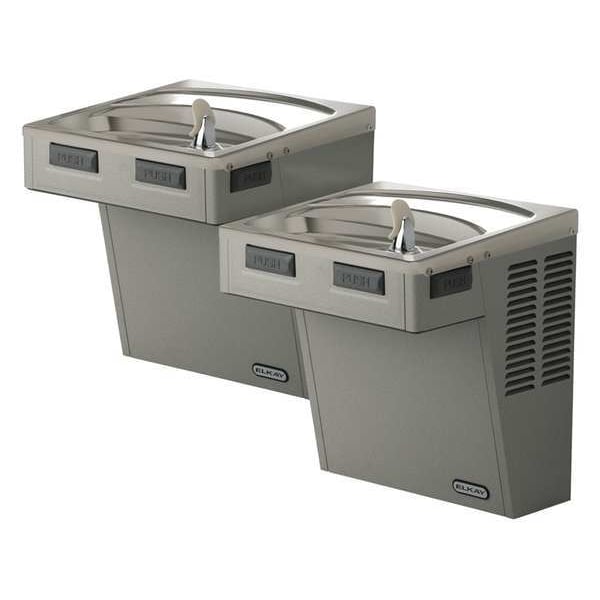

Elkay On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 in H, 36 1/4 in W EMABFTL8LC - main

On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 in H, 36 1/4 in W

  • Mfr # EMABFTL8LC

  • Zoro # G0980287

product price:  $1,429.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EMABFTL8LC
Zoro #
G0980287
UPC #
094902407593
Country of Origin
United States

Dimensions

Depth
18 5/8 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Height
27 in
Width
36 1/4 in
Overall Width
36 1/4 in
Overall Height
27 in
Overall Depth
18 5/8 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Mounting Hole Diameter
7/16 in
Drain Outside Diameter
1 1/4 in
Inlet Tube Outside Diameter
1/4 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Color
Gray
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain
Item
Two-Level Drinking Fountain
Refrigerated / Non-Refrigerated
Refrigerated
Drain Connection
1 1/2 in
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 61, UL 399
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Dispenser Operation
Front and Side Pushbar
Water Temp.
50 Degrees F
Cold Water Capacity
8 gph
Dispenser Design
Wall
Includes
Strainer
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Inlet
3/8 in OD
Vandal Resistant
No
Features
Mechanical Bubbler Push Bars, Provides Chilled Water
Refrigerant Type
R134A
Station Type
Bi-Level Fountain
Cooling Capacity
8 gph @ 50 Degrees F
Basin Material
Stainless Steel
Includes Water Filter
No
Includes Pet Bowl
No
Compressor Horsepower
1/5 hp
Minimum Constant Stream Pressure
20 psi
Maximum Cold Water Temperature
50 Degrees F
Temperature Adjustment
Factory Set but Adjustable
Full Load Current
5 A
Includes Back Panel
No
Antimicrobial
No
Housing Color
Gray
Environment
Indoor
Product Weight
94 lb
Number of Mounting Holes
6
Power Source
Electric Corded
Operating Voltage
115V AC
Minimum Supply Line Pressure
20 psi
Fountain Actuation
Front Pushbar/Side Pushbar
Number of Bubblers
1
Power Consumption
370 W
Maximum Constant Stream Pressure
105 psi
Housing Finish
Vinyl Clad
Refrigeration
Refrigerated
Bi-Level Field Adjustable
Yes

Description

Mechanically-activated water cooler ideal for areas prone to service disruptions. Easy-to-operate front and side pushbar activation.
