  5. On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W

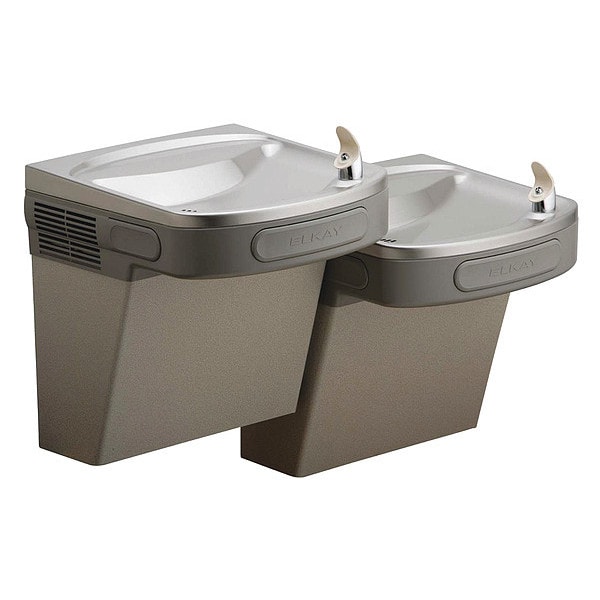

Elkay On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W EZSTLDDLC - main

On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W

  • Mfr # EZSTLDDLC

  • Zoro # G0047577

product price:  $1,056.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EZSTLDDLC
Zoro #
G0047577
UPC #
094902247151
Country of Origin
United States

Dimensions

Height
25 5/16 in
Depth
19 in
Manufacturers Warranty Length
1 yr Limited
Width
36 3/4 in
Overall Height
25 3/8 in
Overall Width
36 3/4 in
Overall Depth
19 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System
Inlet Tube Outside Diameter
1/4 in
Mounting Hole Diameter
7/16 in
Drain Outside Diameter
1 1/2 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Color
Gray
Full Load Amps
1 A
Operation
Push Bar Fountain
Item
Two-Level Drinking Fountain
Refrigerated / Non-Refrigerated
Non Refrigerated
Inlet
3/8 in OD
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 61, UL 399
Compliance
Accessibility,Water Quality Including Lead, Electrical
Dispenser Design
Wall
Includes
Strainer
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Drain Connection
1 1/2 in
Vandal Resistant
No
Dispenser Operation
Front and Side Pushbar
Water Temp.
Ambient
Features
Fastenerless Integrated Drain Reduces Debris Accumulation
Power Consumption
15 W
Power Source
Electric Corded
Minimum Constant Stream Pressure
20 psi
Full Load Current
0.1 A
Fountain Actuation
Front Pushbar
Housing Color
Gray
Includes Water Filter
No
Includes Pet Bowl
No
Product Weight
46 lb
Refrigeration
Non-Refrigerated
Number of Bubblers
1
Number of Mounting Holes
6
Antimicrobial
No
Basin Material
Stainless Steel
Station Type
Bi-Level Fountain
Includes Back Panel
No
Environment
Indoor
Housing Finish
Vinyl Clad
Bi-Level Field Adjustable
Yes
Minimum Supply Line Pressure
20 psi
Maximum Constant Stream Pressure
105 psi
Operating Voltage
115V AC

Description

The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.
