  5. On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W

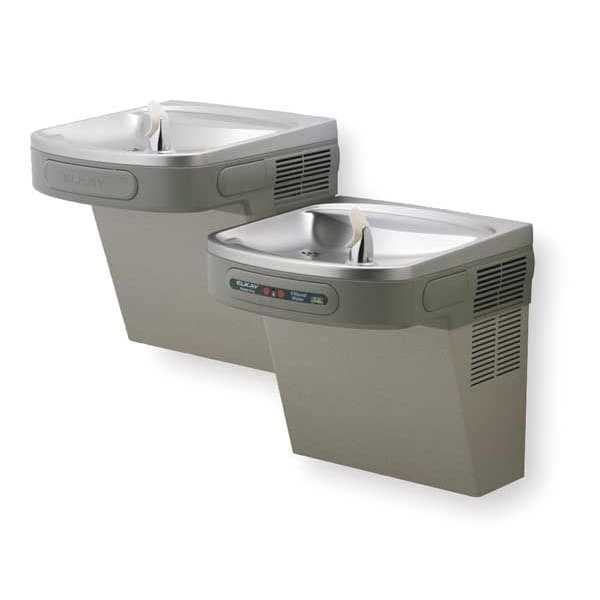

Elkay On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W LZOSTL8LC - main

On-Wall Two-Level Drinking Fountain, 2 Level, 19 in D, 25 5/16 in H, 36 3/4 in W

  • Mfr # LZOSTL8LC

  • Zoro # G2091844

product price:  $1,748.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LZOSTL8LC
Zoro #
G2091844
UPC #
094902428321
Country of Origin
United States

Dimensions

Depth
19 in
Height
25 5/16 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Width
36 3/4 in
Overall Height
25 3/8 in
Overall Width
36 3/4 in
Drain Outside Diameter
1 1/2 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
19 in
Mounting Hole Diameter
7/16 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Color
Gray
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Touchless Fountain
Item
Two-Level Drinking Fountain
Refrigerated / Non-Refrigerated
Refrigerated
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Includes
Filter
Inlet
3/8 in OD
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Cold Water Capacity
8 gph
Dispenser Operation
Front Push Button
Dispenser Design
Wall
Vandal Resistant
No
Water Temp.
50 Degrees F
Drain Connection
1 1/2 in
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Features
Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System
Includes Water Filter
Yes
Includes Back Panel
No
Station Type
Bi-Level Fountain
Includes Pet Bowl
No
Housing Color
Gray
Minimum Constant Stream Pressure
20 psi
Number of Mounting Holes
18
Power Source
Electric Corded
Refrigerant Type
R134A
Product Weight
74 lb
Maximum Constant Stream Pressure
105 psi
Power Consumption
370 W
Full Load Current
5 A
Number of Bubblers
2
Maximum Cold Water Temperature
50 Degrees F
Bi-Level Field Adjustable
Yes
Temperature Adjustment
Factory Set but Adjustable
Operating Voltage
115V AC
Compressor Horsepower
1/5 hp
Fountain Actuation
Sensor
Refrigeration
Refrigerated
Environment
Indoor
Antimicrobial
No
Cooling Capacity
8 gph @ 50 Degrees F
Housing Finish
Vinyl Clad

Description

The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.
