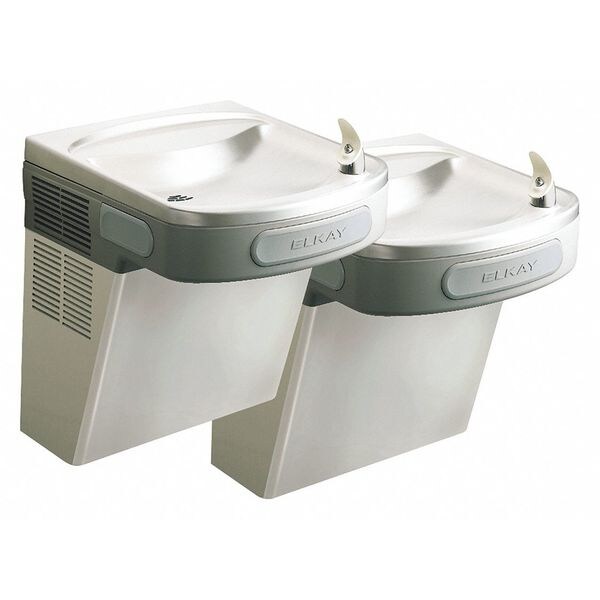

Elkay Wall Mount, Yes ADA, 2 Level Water Cooler LZSTL8SC - main

Wall Mount, Yes ADA, 2 Level Water Cooler

  • Mfr # LZSTL8SC

  • Zoro # G1108987

product price: $1,624.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115V/60Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LZSTL8SC
Zoro #
G1108987
UPC #
094902247533
Country of Origin
United States

Dimensions

Overall Height
25 3/8 in
Overall Width
36 3/4 in
Drain Outside Diameter
1 1/2 in
Overall Depth
19 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Mounting Hole Diameter
7/16 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115V/60Hz
Material
Stainless Steel
Color
Stainless Steel
Refrigerant
R-134a
Full Load Amps
5A
Operation
Push Bar Fountain
Item
Two-Level Drinking Fountain
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Includes
Filter
Vandal Resistant
No
Features
Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System
Product Weight
74 lb
Antimicrobial
No
Refrigeration
Refrigerated
Number of Bubblers
1
Number of Mounting Holes
6
Housing Material
Stainless Steel
Bi-Level Field Adjustable
No
Refrigerant Type
R134A
Fountain Actuation
Front Pushbar/Side Pushbar
Operating Voltage
115V AC
Includes Water Filter
Yes
Cooling Capacity
8 gph @ 50 Degrees F
Includes Pet Bowl
No
Temperature Adjustment
Factory Set but Adjustable
Full Load Current
5 A
Housing Finish
Plain
Power Source
Electric Corded
Maximum Cold Water Temperature
50 Degrees F
Housing Color
Gray
Power Consumption
370 W
Environment
Indoor
Station Type
Bi-Level Fountain

Description

The Elkay EZ models are our most popular water cooler series. The space saving ADA compliant design meets adult or child standards when properly installed. NEW Versatile bi-level design allows for standard high-left/low-right or alternate low-left/high-right installation.
