  9. Vacuum Pump, 10 hp, 212cfm, 3 Phase, 2"Inlet
No Product Image Available

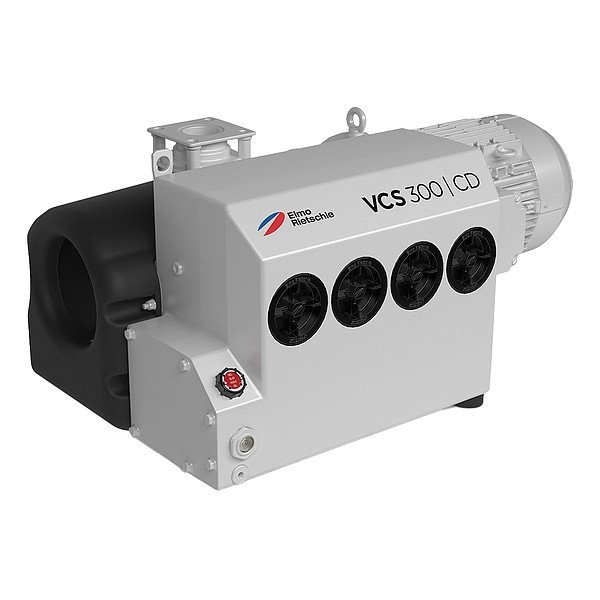

Vacuum Pump, 10 hp, 212cfm, 3 Phase, 2"Inlet

  • Mfr # 1029350400-10H

  • Zoro # G705302154

product price: $24,383.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Voltage
230/460V AC
Phase
Three
Weight
385.5 lb
Overall Length
40.21 in
Overall Height
15.28 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1029350400-10H
Zoro #
G705302154
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
40.21 in
Overall Height
15.28 in
Overall Width
20.47 in
Inlet Size
2 in

Details

Item
Vacuum Pump
Voltage
230/460V AC
Phase
Three
Weight
385.5 lb
Oil Capacity
6.5 L
Output Power
10 hp
Outlet Gender
Female
Frequency
50 Hz, 60 Hz
Sound Level
72 dB
Application
Industrial Vacuum, Meat Packing, Packaging
Pump Type
Rotary Vane Vacuum
Includes
Fine Mesh Filter, Gas Ballast Valve, Protection Cover, Vacuum Non-Return Valve on Suction Side
Maximum Vacuum
29.91 in Hg
Inlet Gender
Female
Maximum Flow Rate
212 cfm
Maximum Speed
1,770 RPM
Finish
Powder Coat
Standards
CSA, CSA EEV, UR
Minimum Operating Temperature
54 Degrees F
Duty Cycle
Continuous
Maximum Operating Temperature
104 Degrees F
Series
V-VCS
Valve Type
Vacuum Non-Return
Vane Material
Aluminum
Inlet Type
NPT
Lead-Free
Yes
Current Rating
14.7 A
Enclosure Type
TEFC
Magnetic Drive
No
Rotor Material
Ductile Iron
Submersible
No
Enclosure Rating
IP55
Thermal Protection
Not Available

Description

Vacuum Pump, Output Power 10 hp, Phase Three, Voltage 230/460V AC, Maximum Flow Rate 212 cfm, Maximum Vacuum 29.91 in Hg, Inlet Size 2 in, Inlet Type NPT, Inlet Gender Female, Outlet Gender Female, Application Industrial Vacuum, Meat Packing, Packaging
