Shop EMERSON

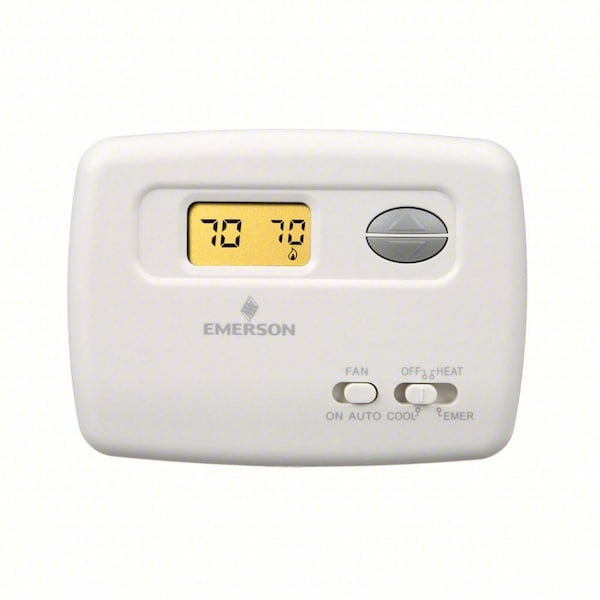

Thermostat, 2 H, 1 C, Hardwired, 24VAC

  • Mfr # 1F79-111

  • Zoro # G4472167

product price:
$
45.69
/ea

Key Features

Voltage
24VAC
Stages Heat
2
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1F79-111
Zoro #
G4472167
UPC #
786710104220
Country of Origin
Viet Nam

Dimensions

Height
3 3/4"
Width
5 1/8"
Depth
1 1/8 in
Overall Width
5 1/8 in
Overall Height
3 5/16 in
Overall Depth
1 1/8 in
Digit Size
Standard

Details

Item
Thermostat
Voltage
24VAC
Stages Heat
2
Mounting Type
Horizontal
Color
White
Control Range
45 Degrees to 99 Degrees F
System Switching
Heat-Cool-Off-Emergency
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Hardwired
750mV Compatible
No
Temporary Temperature Hold
No
Remote Sensing Capability
No
Display
Digital
Batteries Included
No
Battery Backup
No
Terminal Designations
C, E, G, L, O/B, R, W2, Y
Automatic Changeover
No
Dehumidification Control
No
Temperature Limiting
No
Temporary Program Override
No
Includes
2 AA Batteries
For Use With
Heat pump
Low Battery Indicator
No
Humidification Control
No
Fan Switching
Auto-On
Key Pad Lockout
No
Programmable Fan
No
Filter Indicator
No
Display Type
Digital
Mounting
Horizontal
Stages
2H/1C Heat Pump
Control Type
Slide Switch
Type
Digital Nonprogrammable Multi Stage H/C or HP
System Settings
Cool-Emergency Heat-Heat-Off
Number of Zones
1
Housing Color
White
Changeover Type
Manual
Differential Type
Adjustable
System/Fan Settings
Cool-Emergency Heat-Heat-Off/Auto-On
Number of Heating Stages - Conventional System
0
Electrical Connection Type
Hardwired
Includes Positive Off
Yes
Maximum Control Temperature
99 Degrees F
Maximum Operating Temperature
150 Degrees F
Temperature Control Range
45 Degrees to 99 Degrees F
Millivolt Compatible
No
Minimum Operating Temperature
-40 Degrees F
Number of Heating Stages - Heat Pump System
2
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux
Battery Type
(2) AA Batteries
Temperature Scale
Fahrenheit/Celsius
Mounting Direction/Shape
Horizontal
Application
Heat or Cool
Operating Humidity Range
0% to 90%
Filter Change Reminder
No
Minimum Control Temperature
45 Degrees F
Number of Cooling Stages - Heat Pump System
1
Frequency
50 Hz, 60 Hz
Minimum Operating Humidity
0 %
Operating Temperature Range
-40 Degrees to 150 Degrees F
Amperage
2.5 A
Fan Settings
Auto-On
Backlit Type
Key Press or Continuous with Common Wire
Shape
Rectangle
Programming Capability
Not Programmable
Temperature Differential
0.8 Degrees to 1.5 Degrees F
Number of Cooling Stages - Conventional System
0
Thermostat Type
Low Voltage
Maximum Operating Humidity
90 %
Housing Material
Plastic
Mounting Direction
Horizontal

Description

Low Voltage Thermostat, Heat or Cool, Manual, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Slide Switch, Dehumidification Control No, Differential Type Adjustable, Digit Size Standard, Digital, Dual Transformer Compatible Yes, Fan Settings Auto-On, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 45 Degrees F, Maximum Control Temperature 99 Degrees F
