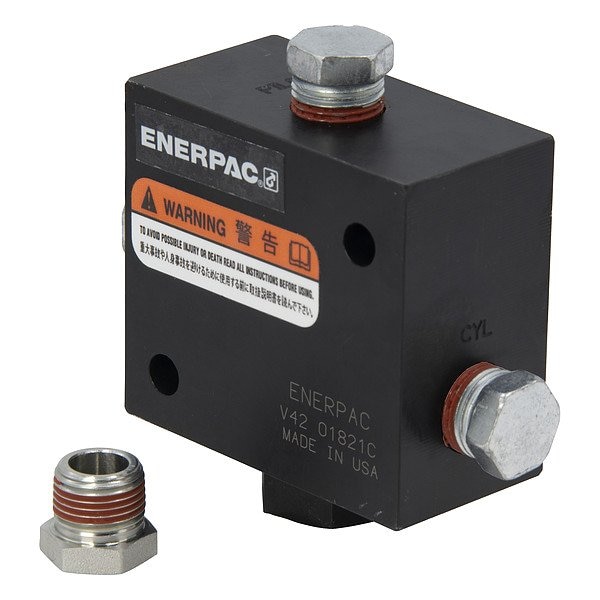

Check valve
- Mfr # V42
- Zoro # G815488991
product price:Â
$
1,145.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Body Material
Steel
Reverse Free Flow
Reverse Free Flow
Overall Length
2.88 in
Series
V
Valve Type
Check, Pilot
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- V42
- Zoro #
- G815488991
- UPC #
- 0662005108251
- Country of Origin
- United States
- Body Material
- Steel
- Reverse Free Flow
- Reverse Free Flow
- Series
- V
- Valve Type
- Check, Pilot
- Item
- Check Valve
- Inlet Connection Gender
- Female
- Port Connections
- Inlet, Outlet, Pilot
- Flow Rate - Maximum
- 10 gpm
- Pressure - Maximum
- 10,000 psi
- Valve Control
- Pressure Regulation
- For Media
- Oil
- Operating Temperature - Maximum
- 120 Degrees F
- Flow Rate - Minimum
- 10 gpm
- Operating Temperature - Minimum
- -20 Degrees F
- Inlet Connection Type
- NPT
- Control Direction
- One-Way with Reverse Flow
- Actuation Mechanism
- Pressure
- Outlet Connection Type
- NPT
- Mounting
- Inline
Dimensions
- Overall Length
- 2.88 in
- Overall Height
- 2.63 in
- Overall Width
- 1.5 in
- Inlet Connection Size
- 3/8"-18
- Port-to-Port Length
- 2.88 in
- Outlet Connection Size
- 3/8 in
- Wire Rope Length
- 2.88 in
- Length
- 2.88 in
Description
Check Valve, Pressure - Maximum 10,000 psi, Body Material Steel, Valve Type Check, Pilot, Port-to-Port Length 2.88 in, Control Direction One-Way with Reverse Flow, Mounting Inline, Reverse Free Flow Reverse Free Flow, Flow Rate - Maximum 10 gpm, Inlet Connection Type NPT, Inlet Connection Gender Female, Operating Temperature - Maximum 120 Degrees F, Operating Temperature - Minimum -20 Degrees F, Outlet Connection Type NPT, Actuation Mechanism Pressure, Flow Rate - Minimum 10 gpm, For Media Oil
