  11. CSM571, 1190 lbs Capacity, 0.28 in Stroke, Manifold Hydraulic Cylinder
Shop All Threaded Body Cylinders
Enerpac

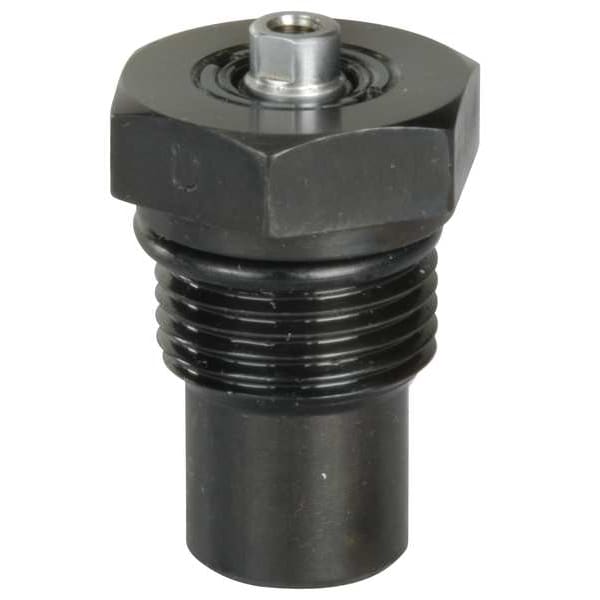

CSM571, 1190 lbs Capacity, 0.28 in Stroke, Manifold Hydraulic Cylinder

product price: $168.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Single Acting
  • Push Capacity @ 5000 psi 1,190 lb
  • Stroke Length 1/4 in
  • Retracted Height 1.74 in
See all product information

Product Information

Dimensions

Stroke Length 1/4 in
Retracted Height 1.74 in
Min. Hole Depth 1.3 in
Extended Height 1.78 in
Plunger Thread Size #8-32

Details

Promotion Restriction Not eligible for promotion
Single Acting/Double Acting Single Acting
Push Capacity @ 5000 psi 1,190 lb
Body Thread 7/8"-14
Pressure Range 580 to 5000 psi
Item Threaded Body Hydraulic Cylinder
Stroke 0.28"
Function Single Acting
Plunger Thread #8-32 UN
Material of Construction Steel
Oil Capacity Push 0.07 cu in
Seal Material Polyurethane/Buna N
Type Threaded Body
Effective Area Push 0.24 sq. in.
Capacity @ 5000 PSI 1190 lb.
Cylinder Type Threaded Body
Body Material Steel
Effective Push Area 0.24 sq in
Mounting Style Manifold Mount

Description

Threaded Body Hydraulic Cylinder, Threaded Body, Manifold Mount, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 1,190 lb, Stroke Length 1/4 in, Effective Push Area 0.24 sq in, Oil Capacity Push 0.07 cu in, Pressure Range 580 to 5000 psi, Extended Height 1.78 in, Retracted Height 1.74 in, Body Thread 7/8 In.-14, Plunger Thread Size #8-32, Min. Hole Depth 1.3 in, Seal Material Polyurethane/Buna N
