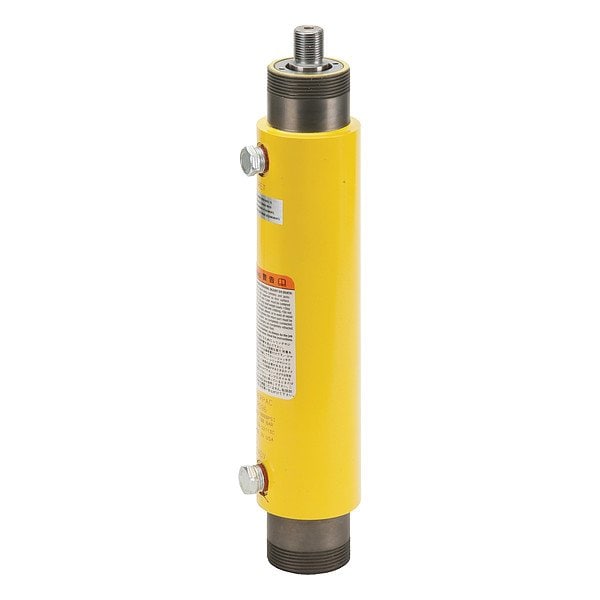

CYL 9 T D/A PRODN
Mfr # BRD96
Zoro # G712655755
product price:Â
$
2,004.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Bore Dia.
38.1 mm
Stroke Length
155 mm
Max. Pressure
10,152.6 psi
Collar Thread Size
M56 x 2
Cylinder Type
General Purpose
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BRD96
- Zoro #
- G712655755
- UPC #
- 0662005115631
- Country of Origin
- China
Dimensions
- Bore Dia.
- 38.1 mm
- Stroke Length
- 155 mm
- Collar Thread Size
- M56 x 2
- Plunger Thread Size
- M22 x 1.5
- Outside Dia.
- 63.5 mm
- Plunger Dia.
- 25.4 mm
- Extended Height
- 505 mm
- Retracted Height
- 350 mm
- Nominal Stroke Length
- 155 mm
- Base Mounting Thread Size
- M30 x 1.5
Details
- Item
- Cylinder
- Max. Pressure
- 10,152.6 psi
- Cylinder Type
- General Purpose
- Weight
- 5.6 kg
- Body Material
- Steel
- Single Acting/Double Acting
- Double Acting
- Max. Push Capacity
- 8.158 ton
- Oil Capacity Push
- 10.8 cu in
- Nominal Capacity
- 10 ton
- Effective Push Area
- 11.4 sq cm
Description
Cylinder, Double Acting, General Purpose, Steel, Nominal Capacity 10 ton, Max. Push Capacity 8.158 ton, Stroke Length 155 mm, Nominal Stroke Length 155 mm, Effective Push Area 11.4 sq cm, Max. Pressure 10,152.6 psi, Oil Capacity Push 10.8 cu in, Retracted Height 350 mm, Extended Height 505 mm, Outside Dia. 63.5 mm, Plunger Dia. 25.4 mm, Plunger Thread Size M22 x 1.5, Collar Thread Size M56 x 2, Base Mounting Thread Size M30 x 1.5, Center Hole Dia. Not Applicable, Weight 5.6 kg, Bore Dia. 38.1 mm
