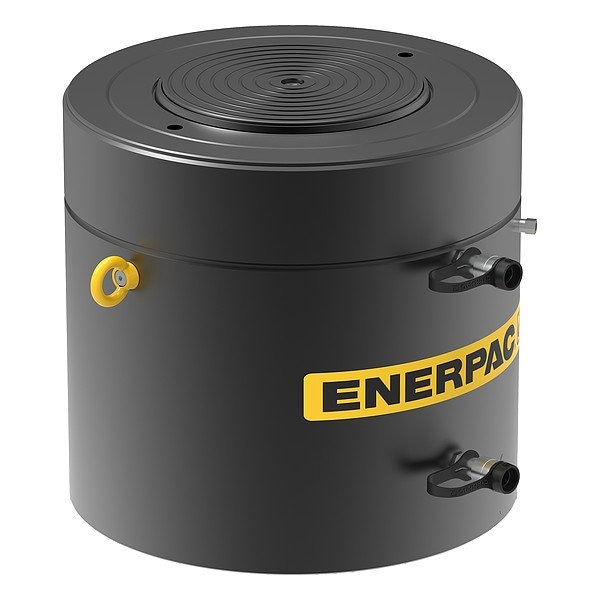

CYL DA 1000 TON 150 MM
Mfr # HCR10006
Zoro # G312655711
product price:Â $51,424.00
/ea
Item requires special delivery charges. A $680.00 per item surcharge will be applied.
Key Features
Bore Dia.
17.32 in
Stroke Length
5 29/32 in
Max. Pressure
10,150 psi
Collar Thread Size
M570 x 5
Weight
2,205 lb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
HCR10006
Zoro #
G312655711
UPC #
0662005393497
Country of Origin
Netherlands
Dimensions
Bore Dia.
17.32 in
Stroke Length
5 29/32 in
Collar Thread Size
M570 x 5
Extended Height
27.24 in
Outside Dia.
22.44 in
Plunger Dia.
13.39 in
Retracted Height
21.34 in
Base Bolt Circle Dia.
500 mm
Nominal Stroke Length
6 in
Base Mounting Thread Size
M24 x 3
Details
Item
Cylinder
Max. Pressure
10,150 psi
Weight
2,205 lb
Cylinder Type
High Tonnage
Single Acting/Double Acting
Double Acting
Body Material
Steel
Max. Push Capacity
1,196 ton
Oil Capacity Push
1,391.83 cu in
Nominal Capacity
1,000 ton
Effective Push Area
235.68 sq in
Description
Cylinder, Double Acting, High Tonnage, Steel, Nominal Capacity 1,000 ton, Max. Push Capacity 1,196 ton, Stroke Length 5 29/32 in, Nominal Stroke Length 5 15/16 in, Effective Push Area 235.68 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 1,391.83 cu in, Retracted Height 21.34 in, Extended Height 27.24 in, Outside Dia. 22.44 in, Plunger Dia. 13.39 in, Plunger Thread Size Not Applicable, Collar Thread Size M570 x 5, Base Bolt Circle Dia. 500 mm, Base Mounting Thread Size M24 x 3
