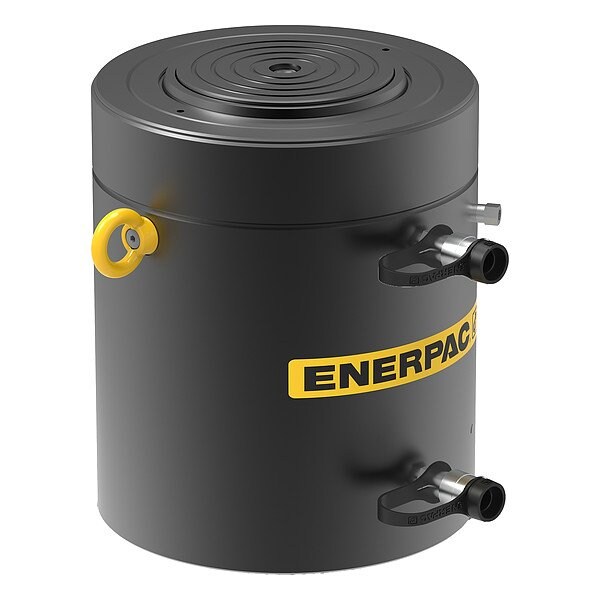

CYL DA 400 TON 150 MM
Mfr # HCR4006
Zoro # G412655673
product price:Â $18,669.00
/ea
Item requires special delivery charges. A $270.00 per item surcharge will be applied.
Key Features
Bore Dia.
10.63 in
Stroke Length
5 29/32 in
Max. Pressure
10,150 psi
Plunger Dia.
8.66 in
Collar Thread Size
M350 x 3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
HCR4006
Zoro #
G412655673
UPC #
0662005393251
Country of Origin
United States
Dimensions
Bore Dia.
10.63 in
Stroke Length
5 29/32 in
Plunger Dia.
8.66 in
Collar Thread Size
M350 x 3
Retracted Height
16.57 in
Extended Height
22.48 in
Outside Dia.
13.78 in
Base Bolt Circle Dia.
300 mm
Nominal Stroke Length
5 15/16 in
Base Mounting Thread Size
M16 x 2
Details
Item
Cylinder
Max. Pressure
10,150 psi
Single Acting/Double Acting
Double Acting
Cylinder Type
High Tonnage
Weight
638 lb
Body Material
Steel
Effective Push Area
88.75 sq in
Max. Push Capacity
450 ton
Oil Capacity Push
524.09 cu in
Nominal Capacity
400 ton
Description
Cylinder, Double Acting, High Tonnage, Steel, Nominal Capacity 400 ton, Max. Push Capacity 450 ton, Stroke Length 5 29/32 in, Nominal Stroke Length 5 15/16 in, Effective Push Area 88.75 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 524.09 cu in, Retracted Height 16.57 in, Extended Height 22.48 in, Outside Dia. 13.78 in, Plunger Dia. 8.66 in, Plunger Thread Size Not Applicable, Collar Thread Size M350 x 3, Base Bolt Circle Dia. 300 mm, Base Mounting Thread Size M16 x 2
