  11. Cylinder, Threaded, 3900 lbs, .51 In Stroke
Shop All Threaded Body Cylinders
Enerpac

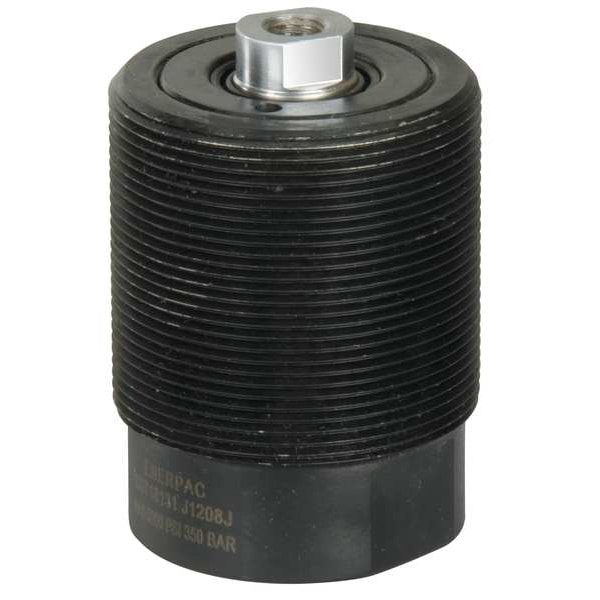

Cylinder, Threaded, 3900 lbs, .51 In Stroke

product price: $293.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Single Acting/Double Acting Double Acting
  • Push Capacity @ 5000 psi 3,900 lb
  • Stroke Length 1/2 in
  • Retracted Height 2.68 in
See all product information

Product Information

Dimensions

Stroke Length 1/2 in
Retracted Height 2.68 in
Outside Dia. 1.875 in
Extended Height 3.55 in
Plunger Thread Size 5/16"-24

Details

Promotion Restriction Not eligible for promotion
Single Acting/Double Acting Double Acting
Push Capacity @ 5000 psi 3,900 lb
Body Thread 1-7/8"-16
Pressure Range 580 to 5000 psi
Plunger Thread 5/16"-24 UN
Function Double Acting
Seal Material Polyurethane/Buna N
Material of Construction Steel
Effective Area Pull 0.46 sq. in.
Item Threaded Body Hydraulic Cylinder
Oil Capacity Pull 0.24 cu in
Capacity @ 5000 PSI 3900 lb.
Effective Area Push 0.77 sq. in.
Stroke 0.51"
Oil Capacity Push 0.4 cu in
Type Threaded Body
Effective Push Area 0.77 sq in
Body Material Steel
Effective Pull Area 0.46 sq in
Mounting Style Threaded Body
Cylinder Type Threaded Body

Description

Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Double Acting, Push Capacity @ 5000 psi 3,900 lb, Stroke Length 1/2 in, Effective Push Area 0.77 sq in, Effective Pull Area 0.46 sq in, Oil Capacity Push 0.4 cu in, Oil Capacity Pull 0.24 cu in, Pressure Range 580 to 5000 psi, Extended Height 3.55 in, Retracted Height 2.68 in, Body Thread 1-7/8 In.-16, Plunger Thread Size 5/16 In.-24, Outside Dia. 1.875 in, Seal Material Polyurethane/Buna N
