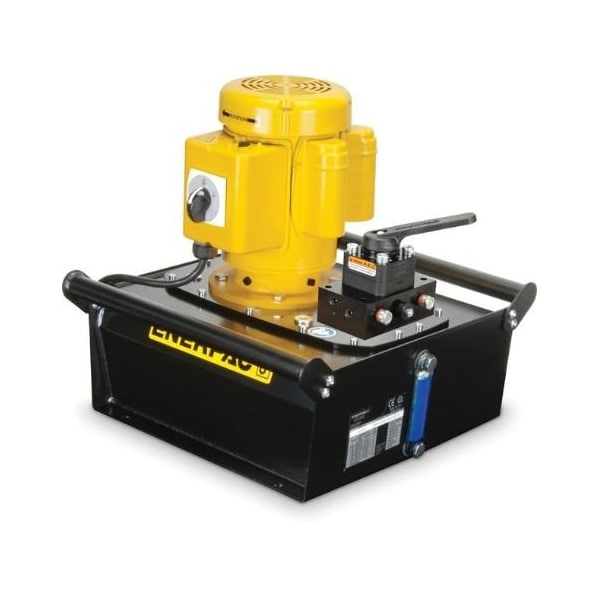

Electric Hydraulic Pump, 380/415V AC
Mfr # ZE5420MW
Zoro # G822937130
product price:Â
$
13,738.99
/ea
Additional $150.00 delivery surcharge applies per item.
Zoro's best price: not eligible for any other offers or promotions
Key Features
Duty Cycle
Extended
Nameplate Voltage
380/415V AC
Control Valve Pressure Relief - Minimum
1,000 psi
Overall Width
19.7 in
Control Valve Type
3-Position, 4-Way
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZE5420MW
- Zoro #
- G822937130
- UPC #
- 662005176076
- Country of Origin
- United States
Dimensions
- Overall Width
- 19.7 in
- Overall Height
- 24.6 in
- Media Intake Connection Size
- 3/8 in
- Control Pendant Size
- 10 ft
- Wire Rope Length
- 27.6 in
- Overall Length
- 27.6 in
Details
- Duty Cycle
- Extended
- Nameplate Voltage
- 380/415V AC
- Control Valve Pressure Relief - Minimum
- 1,000 psi
- Item
- Electric Powered Hydraulic Pump
- Control Valve Type
- 3-Position, 4-Way
- Flow Rate - Maximum
- 120 cu in/min
- Operating Pressure - Maximum
- 10,000 psi
- Phase
- Three
- Displacement @ 10,000 PSI
- 120 cu in/min
- Reservoir Capacity
- 20 L
- Sound Level - Maximum
- 75 dBA
- Cylinder Compatibility
- Double Acting
- Control Valve Function
- Retract
- Frequency
- 50 Hz, 60 Hz
- Displacement @ 5000 psi
- 123 cu in/min
- Horsepower - Maximum
- 3 hp
- Control Valve Pressure Relief - Maximum
- 10,000 psi
- Media Intake Connection Type
- NPTF
Description
Electric Powered Hydraulic Pump, Horsepower - Maximum 3 hp, Nameplate Voltage 380/415V AC, Duty Cycle Extended, Phase Three, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 123 cu in/min, Displacement @ 10,000 PSI 120 cu in/min, Control Valve Type 3-Position, 4-Way, Reservoir Capacity 20 L, Overall Height 24.6 in, Cylinder Compatibility Double Acting, Control Pendant Size 10 ft, Control Valve Function Retract, Control Valve Pressure Relief - Maximum 10,000 psi
