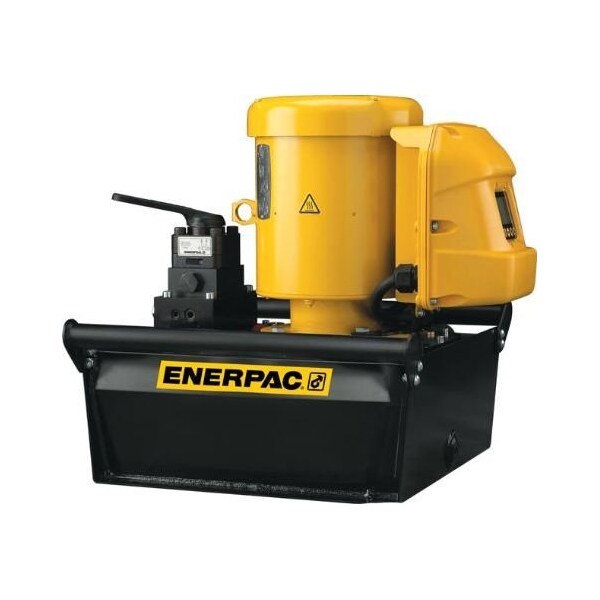

Electric Hydraulic Pump, 380/415V AC
- Mfr # ZE5440SW
- Zoro # G422937844
product price:Â
$
18,761.99
/ea
Additional $175.00 delivery surcharge applies per item.
Zoro's best price: not eligible for any other offers or promotions
Key Features
Nameplate Voltage
380/415V AC
Displacement @ 10,000 PSI
120 cu in/min
Control Valve Pressure Relief - Minimum
1,000 psi
Media Intake Connection Type
NPTF
Overall Width
22.7 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZE5440SW
- Zoro #
- G422937844
- UPC #
- 662005176694
- Country of Origin
- United States
Dimensions
- Overall Width
- 22.7 in
- Media Intake Connection Size
- 3/8 in
- Control Pendant Size
- 10 ft
- Wire Rope Length
- 27.6 in
- Overall Height
- 28.1 in
- Overall Length
- 27.6 in
- Length
- 27.6 in
Details
- Nameplate Voltage
- 380/415V AC
- Displacement @ 10,000 PSI
- 120 cu in/min
- Control Valve Pressure Relief - Minimum
- 1,000 psi
- Media Intake Connection Type
- NPTF
- Item
- Electric Powered Hydraulic Pump
- Control Valve Pressure Relief - Maximum
- 10,000 psi
- Sound Level - Maximum
- 75 dBA
- Cylinder Compatibility
- Double Acting
- Reservoir Capacity
- 10 gal
- Phase
- Three
- Flow Rate - Maximum
- 120 cu in/min
- Operating Pressure - Maximum
- 10,000 psi
- Duty Cycle
- Extended
- Control Valve Type
- 3-Position, 4-Way
- Displacement @ 5000 psi
- 123 cu in/min
- Horsepower - Maximum
- 3 hp
- Control Valve Function
- Advance, Hold, Retract
Description
Electric Powered Hydraulic Pump, Horsepower - Maximum 3 hp, Nameplate Voltage 380/415V AC, Duty Cycle Extended, Phase Three, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 123 cu in/min, Displacement @ 10,000 PSI 120 cu in/min, Control Valve Type 3-Position, 4-Way, Reservoir Capacity 10 gal, Overall Height 28.1 in, Cylinder Compatibility Double Acting, Control Pendant Size 10 ft, Control Valve Function Advance, Hold, Retract, Control Valve Pressure Relief - Maximum 10,000 psi
