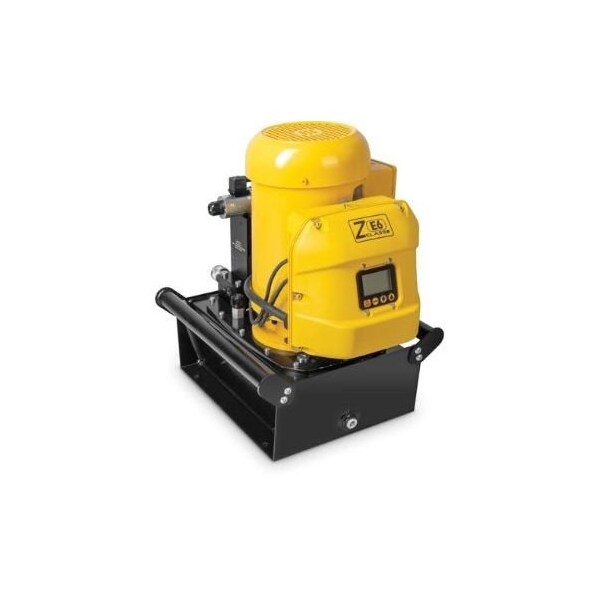

Electric Hydraulic Pump, 460/480V AC
- Mfr # ZE6410XJ-S
- Zoro # G922937269
product price:Â
$
15,641.99
/ea
Additional $175.00 delivery surcharge applies per item.
Zoro's best price: not eligible for any other offers or promotions
Key Features
Control Valve Type
3-Position, 4-Way
Displacement @ 5000 psi
210 cu in/min
Duty Cycle
Extended
Control Valve Pressure Relief - Minimum
1,000 psi
Displacement @ 100 psi
220 cu in/min
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZE6410XJ-S
- Zoro #
- G922937269
- UPC #
- 662005420087
- Country of Origin
- United States
- Control Valve Type
- 3-Position, 4-Way
- Displacement @ 5000 psi
- 210 cu in/min
- Duty Cycle
- Extended
- Control Valve Pressure Relief - Minimum
- 1,000 psi
- Displacement @ 100 psi
- 220 cu in/min
- Cylinder Compatibility
- Double Acting
- Media Intake Connection Type
- NPTF
- Item
- Electric Powered Hydraulic Pump
- Control Valve Function
- Advance, Hold, Retract
- Operating Pressure - Maximum
- 10,000 psi
- Horsepower - Maximum
- 7 1/2 hp
- Reservoir Capacity
- 2.6 gal
- Control Valve Pressure Relief - Maximum
- 10,000 psi
- Sound Level - Maximum
- 80 dBA
- Nameplate Voltage
- 460/480V AC
- Includes
- Single-Stage Pump Unit
- Displacement @ 10,000 PSI
- 200 cu in/min
- Flow Rate - Maximum
- 200 cu in/min
- Phase
- Three
- Power Source
- Corded
Dimensions
- Overall Width
- 15.1 in
- Wire Rope Length
- 27.6 in
- Media Intake Connection Size
- 3/8 in
- Control Pendant Size
- 10 ft
- Overall Height
- 23.6 in
- Overall Length
- 27.6 in
- Length
- 27.6 in
Description
Electric Powered Hydraulic Pump, Horsepower - Maximum 7 1/2 hp, Nameplate Voltage 460/480V AC, Duty Cycle Extended, Phase Three, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 210 cu in/min, Displacement @ 10,000 PSI 200 cu in/min, Control Valve Type 3-Position, 4-Way, Reservoir Capacity 2.6 gal, Overall Height 23.6 in, Cylinder Compatibility Double Acting, Control Pendant Size 10 ft, Control Valve Function Advance, Hold, Retract
