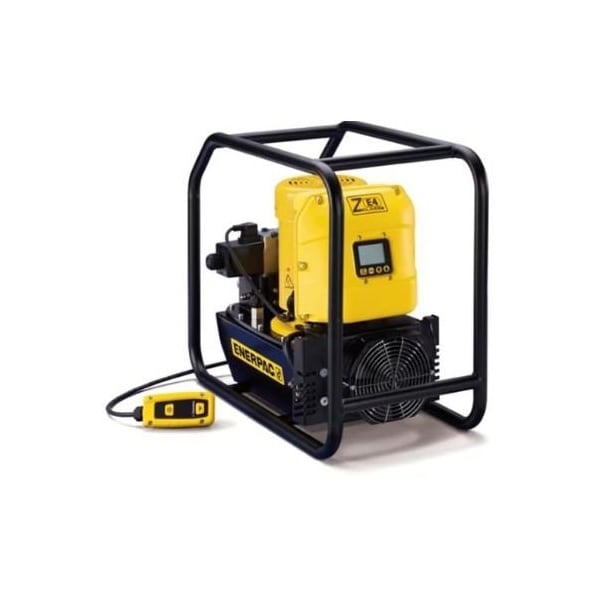

Electric Powered Hydraulic Pump, 115V AC
Mfr # ZE4204TB-QHR
Zoro # G722937506
product price:Â
$
16,571.99
/ea
Additional $150.00 delivery surcharge applies per item.
Zoro's best price: not eligible for any other offers or promotions
Key Features
Control Valve Pressure Relief - Minimum
1,000 psi
Frequency
50 Hz, 60 Hz
Wire Rope Length
25.8 in
Reservoir Capacity
1.2 gal
Media Intake Connection Size
3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ZE4204TB-QHR
- Zoro #
- G722937506
- UPC #
- 662005350643
- Country of Origin
- United States
- Control Valve Pressure Relief - Minimum
- 1,000 psi
- Frequency
- 50 Hz, 60 Hz
- Reservoir Capacity
- 1.2 gal
- Displacement @ 10,000 PSI
- 60 cu in/min
- Flow Rate - Maximum
- 60 cu in/min
- Control Valve Function
- Advance, Retract
- Cylinder Compatibility
- Single Acting
- Nameplate Voltage
- 115V AC
- Phase
- Single
- Item
- Electric Powered Hydraulic Pump
- Includes
- Heat Exchanger, Roll Cage
- Control Valve Pressure Relief - Maximum
- 10,000 psi
- Displacement @ 100 psi
- 650 cu in/min
- Sound Level - Maximum
- 75 dBA
- Control Valve Type
- 2-Position, 3-Way
- Horsepower - Maximum
- 1 1/2 hp
- Duty Cycle
- Extended
- Operating Pressure - Maximum
- 10,000 psi
- Displacement @ 5000 psi
- 62 cu in/min
- Media Intake Connection Type
- NPTF
Description
Electric Powered Hydraulic Pump, Horsepower - Maximum 1 1/2 hp, Nameplate Voltage 115V AC, Duty Cycle Extended, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 62 cu in/min, Displacement @ 10,000 PSI 60 cu in/min, Control Valve Type 2-Position, 3-Way, Reservoir Capacity 1.2 gal, Overall Height 20.2 in, Cylinder Compatibility Single Acting, Control Pendant Size 10 ft, Control Valve Function Advance, Retract, Control Valve Pressure Relief - Maximum 10,000 psi
