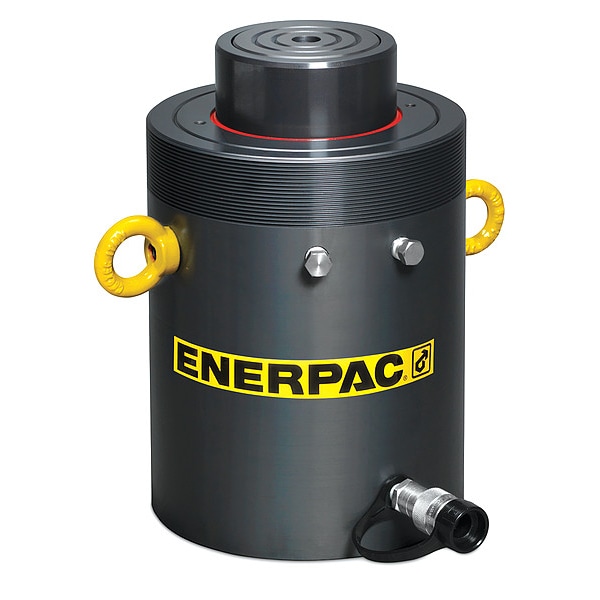

HCG1002, 113 ton Capacity, 1.97 in Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
Mfr # HCG1002
Zoro # G5526824
product price:Â
$
3,751.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Cylinder Nominal Capacity
100 tons
Application
Lift, Push
Includes
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Stroke Length
2 in
Material of Construction
Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HCG1002
- Zoro #
- G5526824
- UPC #
- 662005391615
- Country of Origin
- China
Dimensions
- Stroke Length
- 2 in
- Base Mounting Thread Size
- M12
- Plunger Dia.
- 3.74 in
- Bore Dia.
- 5.31 in
- Nominal Stroke Length
- 2 in
- Retracted Height
- 7.95 in
- Outside Dia.
- 6.89 in
- Extended Height
- 9.9 in
Details
- Item
- Hydraulic Ram
- Cylinder Nominal Capacity
- 100 tons
- Application
- Lift, Push
- Includes
- (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
- Material of Construction
- Steel
- Max. Pressure
- 10,150 psi
- Weight
- 73 lb
- Nominal Capacity
- 100 ton
- Effective Push Area
- 22.19 sq in
- Cylinder Type
- High Cycle
- Single Acting/Double Acting
- Single Acting
- Oil Capacity Push
- 43.67 cu in
- Series
- HCG
- Body Material
- Steel
- Oil Capacity
- 43.67 cu in
Description
Hydraulic Ram, Single Acting, High Cycle, Steel, Nominal Capacity 100 ton, Stroke Length 2 in, Nominal Stroke Length 2 in, Effective Push Area 22.19 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 43.67 cu in, Retracted Height 7.95 in, Extended Height 9.9 in, Outside Dia. 6.89 in, Plunger Dia. 3.74 in, Base Mounting Thread Size M12, Weight 73 lb, Series HCG, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 5.31 in
