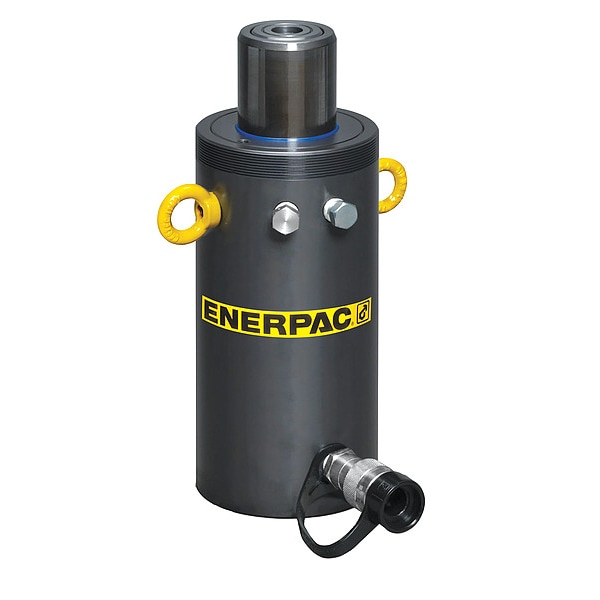

HCG502, 62 ton Capacity, 1.97 in Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
Mfr # HCG502
Zoro # G5526912
product price:Â
$
2,186.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Cylinder Nominal Capacity
50 tons
Application
Lift, Push
Includes
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Stroke Length
2 in
Effective Push Area
12.17 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HCG502
- Zoro #
- G5526912
- UPC #
- 662005391554
- Country of Origin
- China
Dimensions
- Stroke Length
- 2 in
- Nominal Stroke Length
- 2 in
- Extended Height
- 9.2 in
- Plunger Dia.
- 2.76 in
- Outside Dia.
- 5.12 in
- Bore Dia.
- 3.94 in
- Base Mounting Thread Size
- M12
- Retracted Height
- 7.2 in
Details
- Item
- Hydraulic Ram
- Cylinder Nominal Capacity
- 50 tons
- Application
- Lift, Push
- Includes
- (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
- Effective Push Area
- 12.17 sq in
- Weight
- 37 lb
- Body Material
- Steel
- Series
- HCG
- Single Acting/Double Acting
- Single Acting
- Material of Construction
- Steel
- Max. Pressure
- 10,150 psi
- Oil Capacity
- 23.96 cu in
- Nominal Capacity
- 50 ton
- Cylinder Type
- High Cycle
- Oil Capacity Push
- 23.96 cu in
Description
Hydraulic Ram, Single Acting, High Cycle, Steel, Nominal Capacity 50 ton, Stroke Length 2 in, Nominal Stroke Length 2 in, Effective Push Area 12.17 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 23.96 cu in, Retracted Height 7.2 in, Extended Height 9.2 in, Outside Dia. 5.12 in, Plunger Dia. 2.76 in, Base Mounting Thread Size M12, Weight 37 lb, Series HCG, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 3.94 in
