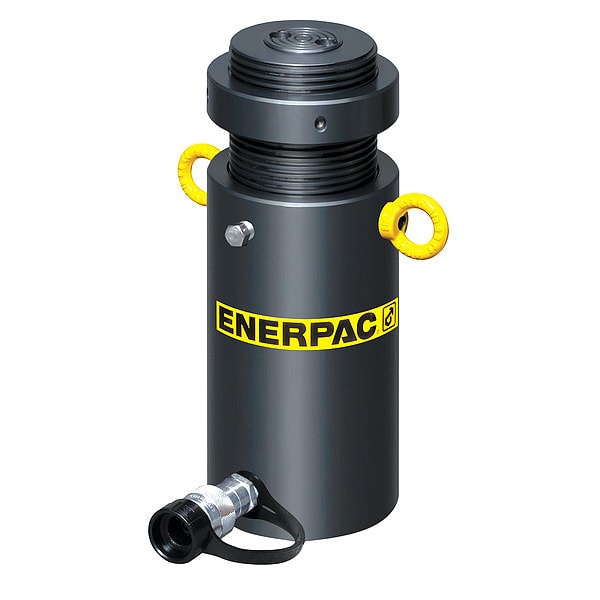

HCL5010, 62 ton Capacity, 9.84 in Stroke, Single-Acting, High Tonnage, Lock Nut Hydraulic Cylinder
Mfr # HCL5010
Zoro # G5521504
product price:Â
$
3,456.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Cylinder Nominal Capacity
50 tons
Application
Lift, Push, Hold
Includes
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Stroke Length
9 7/8 in
Max. Pressure
10,000 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HCL5010
- Zoro #
- G5521504
- UPC #
- 662005392254
- Country of Origin
- China
Dimensions
- Stroke Length
- 9 7/8 in
- Outside Dia.
- 5.12 in
- Nominal Stroke Length
- 10 in
- Retracted Height
- 14.33 in
- Bore Dia.
- 3.94 in
- Extended Height
- 24.2 in
- Plunger Dia.
- TR 100 x 4
- Base Mounting Thread Size
- M8
Details
- Item
- Hydraulic Ram
- Cylinder Nominal Capacity
- 50 tons
- Application
- Lift, Push, Hold
- Includes
- (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
- Max. Pressure
- 10,000 psi
- Body Material
- Steel
- Oil Capacity Push
- 119.82 cu in
- Oil Capacity
- 119.82 cu in
- Material of Construction
- Steel
- Series
- HCL
- Cylinder Type
- High Cycle
- Nominal Capacity
- 50 ton
- Weight
- 83 lb
- Effective Push Area
- 12.17 sq in
- Single Acting/Double Acting
- Single Acting
Description
Hydraulic Ram, Single Acting, High Cycle, Steel, Nominal Capacity 50 ton, Stroke Length 9 7/8 in, Nominal Stroke Length 10 in, Effective Push Area 12.17 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 119.82 cu in, Retracted Height 14.33 in, Extended Height 24.2 in, Outside Dia. 5.12 in, Base Mounting Thread Size M8, Weight 83 lb, Series HCL, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 3.94 in
