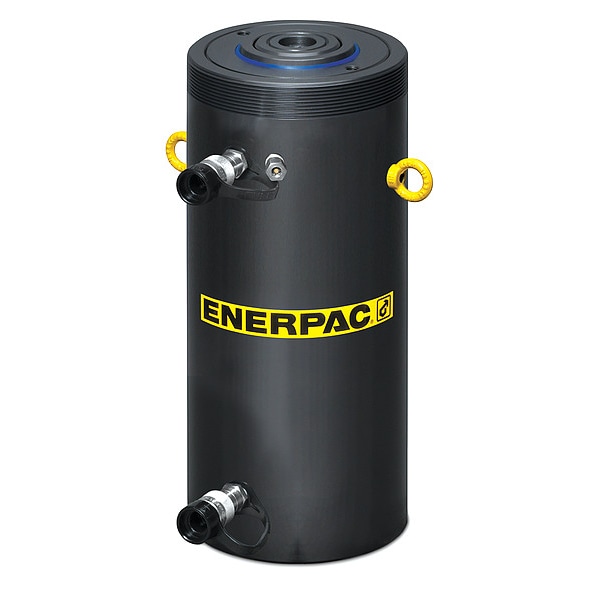

HCR1002, 113 ton Capacity, 1.97 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
Mfr # HCR1002
Zoro # G5526772
product price:Â $4,181.00
/ea
Free Shipping & Returns
Key Features
Cylinder Nominal Capacity
100 tons
Application
Lift, Lower, Push
Includes
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Stroke Length
2 in
Max. Pressure
10,150 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HCR1002
- Zoro #
- G5526772
- UPC #
- 662005392933
- Country of Origin
- China
Dimensions
- Stroke Length
- 2 in
- Retracted Height
- 7.95 in
- Bore Dia.
- 5.31 in
- Base Mounting Thread Size
- M12
- Nominal Stroke Length
- 2 in
- Outside Dia.
- 6.89 in
- Plunger Dia.
- 3.74 in
- Extended Height
- 9.9 in
Details
- Item
- Hydraulic Ram
- Cylinder Nominal Capacity
- 100 tons
- Application
- Lift, Lower, Push
- Includes
- (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
- Max. Pressure
- 10,150 psi
- Cylinder Type
- High Cycle
- Oil Capacity Push
- 43.67 cu in
- Effective Push Area
- 22.19 sq in
- Body Material
- Steel
- Nominal Capacity
- 100 ton
- Oil Capacity
- Advance: 43.67 cu in; Retract: 22.05 cu in
- Material of Construction
- Steel
- Single Acting/Double Acting
- Double Acting
- Series
- HCR
- Weight
- 74 lb
Description
Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 100 ton, Stroke Length 2 in, Nominal Stroke Length 2 in, Effective Push Area 22.19 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 43.67 cu in, Retracted Height 7.95 in, Extended Height 9.9 in, Outside Dia. 6.89 in, Plunger Dia. 3.74 in, Base Mounting Thread Size M12, Weight 74 lb, Series HCR, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 5.31 in
