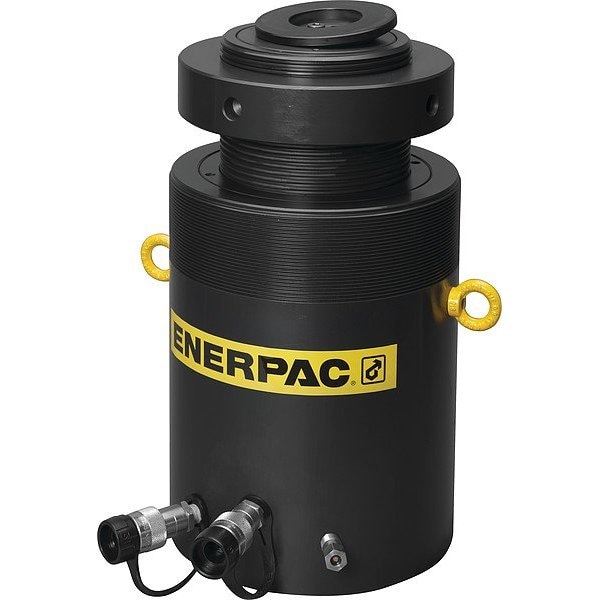

High Tonnage Lock Nut Cylinder
Mfr # HCRL20012
Zoro # G612655633
product price: $20,425.99
/ea
Item requires special delivery charges. A $220.00 per item surcharge will be applied.
Key Features
Stroke Length
11 13/16 in
Max. Pressure
10,150 psi
Collar Thread Size
M260 x 3
Extended Height
34.21 in
Single Acting/Double Acting
Double Acting
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HCRL20012
Zoro #
G612655633
UPC #
0662005397174
Country of Origin
Netherlands
Dimensions
Stroke Length
11 13/16 in
Collar Thread Size
M260 x 3
Extended Height
34.21 in
Plunger Dia.
170 mm
Center Hole Dia.
7 7/8 in
Outside Dia.
10.24 in
Retracted Height
22.4 in
Nominal Stroke Length
12 in
Base Bolt Circle Dia.
8.46 in
Details
Item
Lock Nut Cylinder
Max. Pressure
10,150 psi
Single Acting/Double Acting
Double Acting
Cylinder Type
Lock Nut
Body Material
Steel
Nominal Capacity
200 ton
Effective Push Area
44.31 sq in
Oil Capacity Push
523.31 cu in
Description
Lock Nut Cylinder, Double Acting, Lock Nut, Steel, Nominal Capacity 200 ton, Stroke Length 11 13/16 in, Nominal Stroke Length 12 in, Effective Push Area 44.31 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 523.31 cu in, Retracted Height 22.4 in, Extended Height 34.21 in, Outside Dia. 10.24 in, Plunger Dia. 170 mm, Collar Thread Size M260 x 3, Base Bolt Circle Dia. 8.46 in, Center Hole Dia. 7 7/8 in
