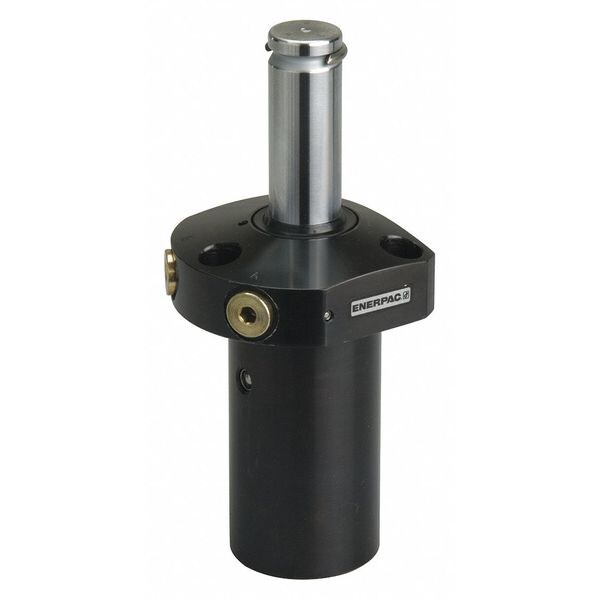

Hydraulic Cylinder, Upper Flange, 4200 lb.
Mfr # SULD202
Zoro # G0091839
product price:Â $1,135.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
4,200 lbf
Total Stroke
1.16 in
Clamping Stroke
0.55 in
Effective Area Clamped
1.10 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SULD202
- Zoro #
- G0091839
- UPC #
- 662005108817
- Country of Origin
- United States
Dimensions
- Bolt Size
- 5/16"-24
- Min. Hole Depth
- 0.67 in
- Extended Height
- 6.57 in
- Outside Dia.
- 2.46 in
- Port Size
- #4 SAE
- Mounting Hole Dia.
- 2.48 in
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 4,200 lbf, Total Stroke 1.16 in, Effective Area Clamped 1.10 sq in, Clamping Stroke 0.55 in, Max. Pressure 5,000 psi, Series SU, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 2.35 sq in, Oil Capacity Clamped 1.22 cu in, Oil Capacity Unclamped 2.6 cu in, Max. Oil Flow 140 cu in/min, Pressure Range 500 to 5000 psi
