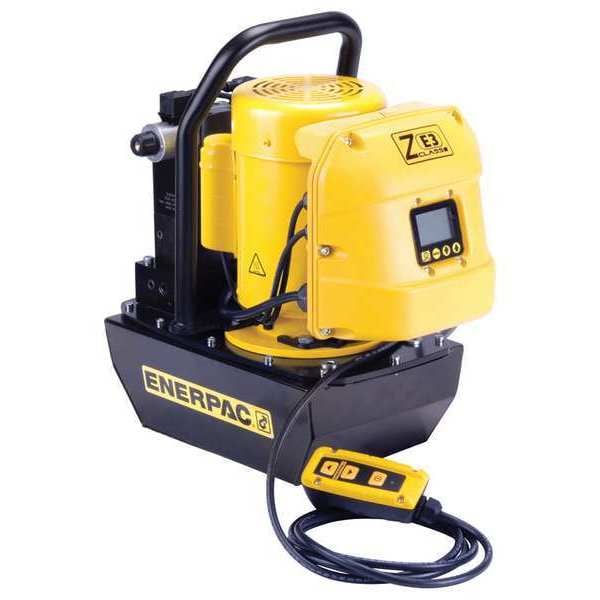

Hydraulic Electric Pump, High Force, 1 hp, Induction Motor, 10,000 psi Max Pressure

  • Mfr # ZE3308SB

  • Zoro # G2118435

product price:  $13,078.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Type
High Force
Reservoir Capacity (Cu.-In.)
462 cu in
Reservoir Capacity (Gal.)
2 gal
Oil Displacement @ 100 PSI
450 cu in/min
Oil Displacement @ 700 PSI
385 cu in/min
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZE3308SB
Zoro #
G2118435
UPC #
662005130948
Country of Origin
United States

Dimensions

Control Pendant Size (Ft.)
10 ft
Media Intake Connection Size
3/8 in
Overall Length
25.8 in
Overall Height
20.2 in
Control Pendant Size
10 ft
Overall Width
12.5 in

Details

Item
Hydraulic Electric Pump
Type
High Force
Reservoir Capacity (Cu.-In.)
462 cu in
Reservoir Capacity (Gal.)
2 gal
Oil Displacement @ 100 PSI
450 cu in/min
Oil Displacement @ 700 PSI
385 cu in/min
Oil Displacement @ 5000 PSI
42 cu in/min
Oil Displacement @ 10,000 PSI
40 cu in/min
HP
1 hp
Maximum Pressure
10,000 psi
Motor Type
Induction
Control Valve
Remote 3 Way/3 Position
Fluid Port NPT (In.)
3/8
dBA
75 to 78
Application
Designed for Heavy Duty, Extended Use Applications of More Than One Hour
Amps AC
16 A
Control Pendant Voltage
Manual
Voltage
115 V AC
Reservoir Material
Steel
Relief Valve Range
70 to 700 bar
Charger Input Voltage
115V AC
Oil Displacement @ 5000 psi
42 cu in/min
Flow Rate - Maximum
40 cu in/min
Duty Cycle
Continuous
Control Valve Type
3-Position, 3-Way, Tandem Center
Operating Pressure - Maximum
10,000 psi
Displacement @ 5000 psi
42 cu in/min
Current
10.5 A
Frequency
50 Hz, 60 Hz
Displacement @ 100 psi
450 cu in/min
Control Valve Pressure Relief - Minimum
1,000 psi
Displacement @ 200 psi
445 cu in/min
Displacement @ 700 psi
285 cu in/min
Media Intake Connection Type
NPTF
Sound Level - Maximum
75 dBA
Phase
Single
Displacement @ 10,000 PSI
40 cu in/min
Reservoir Capacity
2 gal
Nameplate Voltage
115V AC
Horsepower - Maximum
1 hp
Cylinder Compatibility
Single Acting
Control Valve Function
Advance, Hold, Retract
Displacement @ 1000 psi
400 cu in/min
Control Valve Pressure Relief - Maximum
10,000 psi

Description

Hydraulic Electric Pump, Horsepower - Maximum 1 hp, Nameplate Voltage 115V AC, Duty Cycle Continuous, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 42 cu in/min, Displacement @ 10,000 PSI 40 cu in/min, Control Valve Type 3-Position, 3-Way, Tandem Center, Reservoir Capacity 2 gal, Reservoir Material Steel, Overall Height 20.2 in, Cylinder Compatibility Single Acting, Charger Input Voltage 115V AC, Control Pendant Size 10 ft, Control Pendant Voltage Manual
