  11. Hydraulic Electric Pump, High Force, 1.7 hp, Universal Motor, 10,000 psi Max Pressure

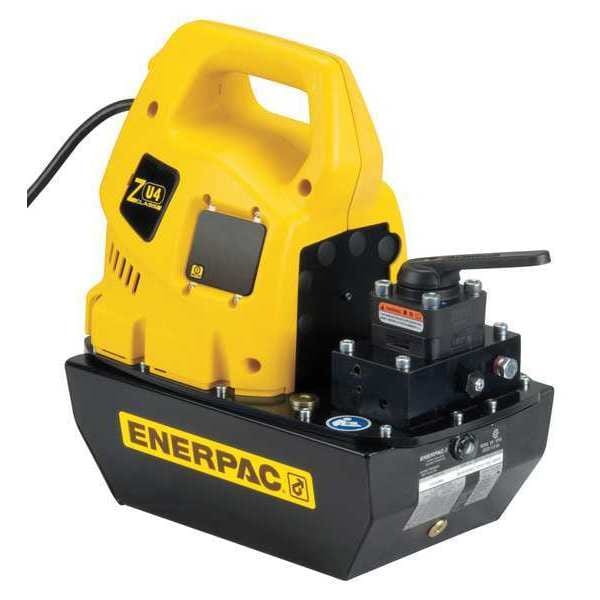

Enerpac Hydraulic Electric Pump, High Force, 1.7 hp, Universal Motor, 10,000 psi Max Pressure ZU4308MB - main

Hydraulic Electric Pump, High Force, 1.7 hp, Universal Motor, 10,000 psi Max Pressure

  • Mfr # ZU4308MB

  • Zoro # G2761902

product price: $7,261.99
/ea
Free Shipping & Returns

Key Features

Type
High Force
Reservoir Capacity (Cu.-In.)
462 cu in
Reservoir Capacity (Gal.)
2 gal
Oil Displacement @ 100 PSI
700 cu in/min
Oil Displacement @ 700 PSI
535 cu in/min
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZU4308MB
Zoro #
G2761902
UPC #
662005127276
Country of Origin
United States

Dimensions

Media Intake Connection Size
1/2 in
Overall Length
25 in
Overall Width
12.5 in
Overall Height
16.7 in

Details

Item
Hydraulic Electric Pump
Type
High Force
Reservoir Capacity (Cu.-In.)
462 cu in
Reservoir Capacity (Gal.)
2 gal
Oil Displacement @ 100 PSI
700 cu in/min
Oil Displacement @ 700 PSI
535 cu in/min
Oil Displacement @ 5000 PSI
76 cu in/min
Oil Displacement @ 10,000 PSI
60 cu in/min
HP
1.7 hp
Maximum Pressure
10,000 psi
Motor Type
Universal
Amps AC
20 A
Application
Designed for Intermittant Use of Under 1 Hour
Voltage
115 V AC
Fluid Port NPT (In.)
3/8
Control Valve
Manual 3 Way/3 Position
Reservoir Material
Steel
dBA
85 to 90
Charger Input Voltage
115V AC
Control Pendant Voltage
Manual
Relief Valve Range
140 to 700 bar
Oil Displacement @ 5000 psi
76 cu in/min
Cylinder Compatibility
Single Acting
Displacement @ 700 psi
535 cu in/min
Phase
Single
Duty Cycle
Intermittent
Control Valve Pressure Relief - Maximum
10,000 psi
Sound Level - Maximum
90 dBA
Reservoir Capacity
2 gal
Sound Level - Minimum
85 dBA
Displacement @ 1000 psi
500 cu in/min
Frequency
50 Hz, 60 Hz
Flow Rate - Maximum
60 cu in/min
Media Intake Connection Type
NPTF
Displacement @ 100 psi
700 cu in/min
Displacement @ 5000 psi
76 cu in/min
Control Valve Pressure Relief - Minimum
2,000 psi
Horsepower - Maximum
1 7/10 hp
Control Valve Function
Advance, Hold, Retract
Operating Pressure - Maximum
10,000 psi
Nameplate Voltage
115V AC
Displacement @ 200 psi
675 cu in/min
Current
22 A
Control Valve Type
3-Position, 3-Way, Tandem Center
Displacement @ 10,000 PSI
60 cu in/min

Description

Hydraulic Electric Pump, Horsepower - Maximum 1 7/10 hp, Nameplate Voltage 115V AC, Duty Cycle Intermittent, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 76 cu in/min, Displacement @ 10,000 PSI 60 cu in/min, Control Valve Type 3-Position, 3-Way, Tandem Center, Reservoir Capacity 2 gal, Reservoir Material Steel, Overall Height 16.7 in, Cylinder Compatibility Single Acting, Charger Input Voltage 115V AC, Control Pendant Voltage Manual
