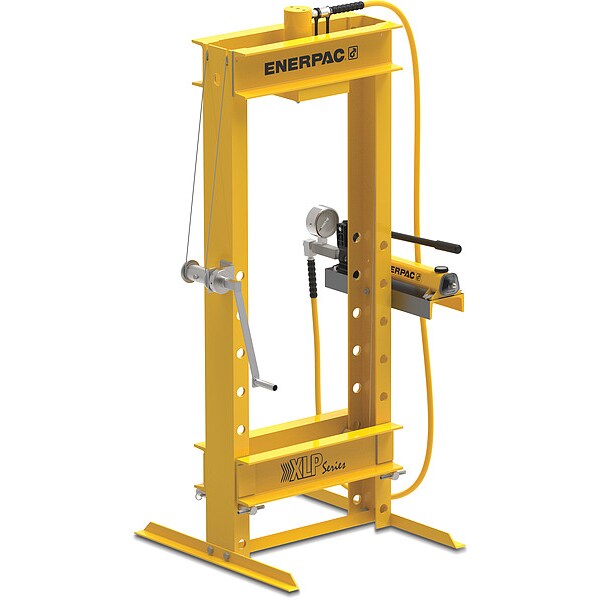

Enerpac Hydraulic Press, 67.13 in H, Manual XLP256P392U - main

Hydraulic Press, 67.13 in H, Manual

  • Mfr # XLP256P392U

  • Zoro # G4700662

product price: $5,164.99
/ea
Additional $250.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Hand Pump
Base Length
27 61/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XLP256P392U
Zoro #
G4700662
UPC #
-
Country of Origin
Netherlands

Dimensions

Base Length
27 61/64 in
Base Width
28 in
Overall Height
67 1/8 in
Overall Depth
30 1/4 in
Overall Width
28 in
Overall Length
27 61/64 in
Table Length
24 51/64 in
Width Between Table Channels
5 33/64 in
Maximum Bed Width
20.08 in
Press Bed Width
20 1/8 in
Hydraulic Hose Length
10 ft
Base Depth
30 1/4 in
Press Bed Depth
5 1/2 in

Details

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Hand Pump
Includes
General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force and Pressure Gauge, Hydraulic Hand Pump
Cylinder Type
Single Acting
Application
Pressing Bearings
Reservoir Capacity
55 cu in
Operating Pressure
10,000 psi
Features
Horizontal Cylinder Adjustment Enables Flexible Load Placement, Welded Frame
Pump
Mfr. No. P392
Item
Hydraulic Press
Pressure
10,000 psi
Min. Ram-to-Table Distance
14 1/16 in
Stroke
6 1/4 in
Adjustable Bed
Adjustable
Distance Between Uprights
20 1/8 in
For Use With
Single Acting Cylinder
Max. Ram-to-Table Distance
47 11/16 in
Compatible Mfr. Model Number
P392, RC256
Color
Yellow
Maximum Vertical Daylight
47.68 in
Series
XLP
Power Source Type
Manual
Pump Model Number
P392
Ram-to-Table Distance - Maximum
47 5/8 in
Operation
Manual
Cylinder Model Number
RC256
Capacity
25 ton
Ram-to-Table Distance - Minimum
14 in

Description

Hydraulic Press, Pump Type Hand Pump, Frame Type H-Frame, Frame Capacity 25 ton, Cylinder Type Single Acting
