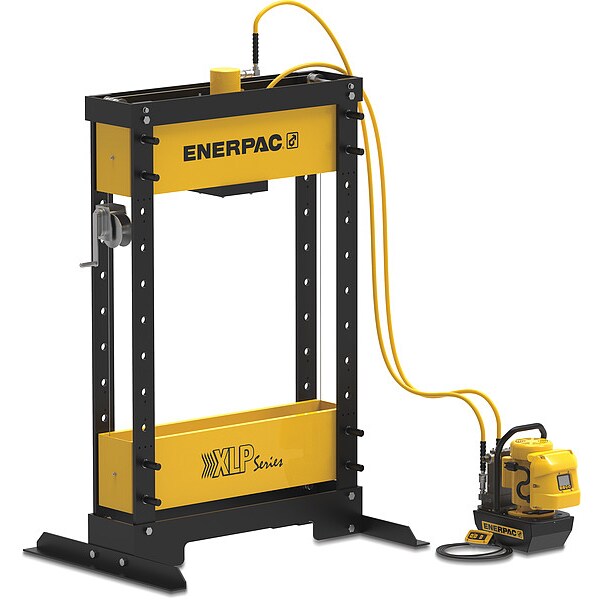

Enerpac Hydraulic Press, 76.97 in H, Electric XLP5013ZEIU - main

Hydraulic Press, 76.97 in H, Electric

  • Mfr # XLP5013ZEIU

  • Zoro # G4700750

product price: $15,169.99
/ea
Item requires special delivery charges. A $600.00 per item surcharge will be applied.

Key Features

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
13 1/8 in
Pump Type
Electric
Base Length
54 23/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XLP5013ZEIU
Zoro #
G4700750
UPC #
-
Country of Origin
India

Dimensions

Base Length
54 23/32 in
Base Width
54 3/4 in
Overall Height
77 in
Overall Width
54 3/4 in
Overall Depth
39 3/8 in
Table Length
38 63/64 in
Overall Length
54 23/32 in
Width Between Table Channels
9 29/64 in
Maximum Bed Width
38.98 in
Press Bed Width
39 in
Base Depth
39 3/8 in
Press Bed Depth
9 1/2 in

Details

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
13 1/8 in
Pump Type
Electric
Item
Hydraulic Press
Features
Cut-Away in Lower Frame for Pallet Truck Access Allows Easy Transportation, Horizontal Cylinder Adjustment Enables Flexible Load Placement
Application
Pressing Bearings
Operating Pressure
10,000 psi
Pump
Mfr. No. ZE4408SI
Includes
Couplers, Cylinder, Gauge, Hose, Pump
Cylinder Type
Double Acting
Stroke
13 1/8 in
Compatible Mfr. Model Number
RR5013, VB501
Max. Ram Advance Speed
0.98 in/sec
Color
Yellow
Max. Ram-to-Table Distance
37 51/64 in
Distance Between Uprights
39 in
For Use With
Double Acting Cylinder
Pressure
10,000 psi
Min. Ram-to-Table Distance
8 17/64 in
Max. Ram Press Speed
0.09 in/sec
Power Source Type
Electric
Maximum Vertical Daylight
37.8 in
Series
XLP
Cylinder Model Number
RR5013
Pump Model Number
ZE4408SI
Maximum Ram Press Speed
0.09 in/sec
Maximum Ram Advance Speed
0.98 in/sec
Horsepower
1 1/2 hp
Capacity
50 ton
Ram-to-Table Distance - Minimum
8 1/4 in
Ram-to-Table Distance - Maximum
37 3/4 in
Operation
Electric

Description

Hydraulic Press, Pump Type Electric, Frame Type H-Frame, Frame Capacity 50 ton, Cylinder Type Double Acting
