Enerpac Hydraulic Press, 76.97 in H, Manual XLP506XA12GU - main

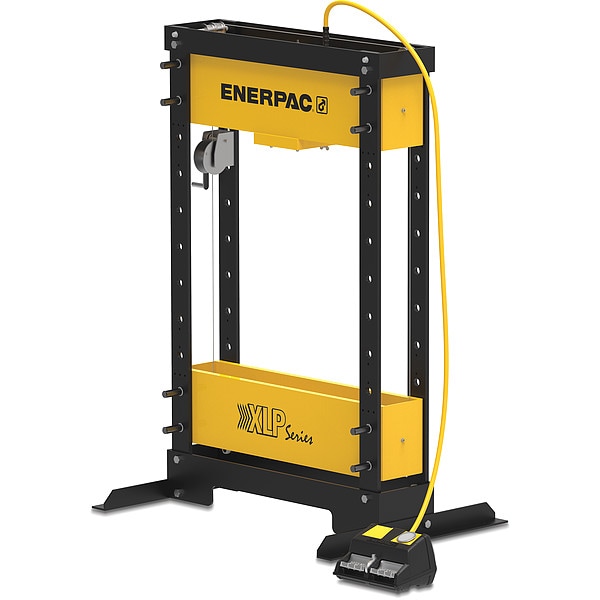

Hydraulic Press, 76.97 in H, Manual

  • Mfr # XLP506XA12GU

  • Zoro # G4700653

product price: $9,592.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Air
Base Length
54 23/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XLP506XA12GU
Zoro #
G4700653
UPC #
-
Country of Origin
India

Dimensions

Base Length
54 23/32 in
Base Width
54 3/4 in
Overall Height
77 in
Overall Depth
39 3/8 in
Overall Width
54 3/4 in
Table Length
38 63/64 in
Width Between Table Channels
9 29/64 in
Overall Length
54 23/32 in
Maximum Bed Width
38.98 in
Base Depth
39 3/8 in
Press Bed Depth
9 1/2 in
Hydraulic Hose Length
10 ft
Press Bed Width
39 in

Details

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
6 1/4 in
Pump Type
Air
Includes
Air Driven Hydraulic Pump, General Purpose Hydraulic Cylinder, Thermo-Plastic High Pressure Hydraulic Hose
Operating Pressure
10,000 psi
Cylinder Type
Single Acting
Reservoir Capacity
122 cu in
Item
Hydraulic Press
Pump
Mfr. No. XA12G
Features
Cut-Away in Lower Frame for Pallet Truck Access Allows Easy Transportation, Horizontal Cylinder Adjustment Enables Flexible Load Placement
Application
Pressing Bearings
For Use With
Single Acting Cylinder
Compatible Mfr. Model Number
RC506, XA12G
Min. Ram-to-Table Distance
8 17/64 in
Distance Between Uprights
39 in
Max. Ram-to-Table Distance
37 51/64 in
Max. Ram Press Speed
0.02 in/sec
Stroke
6 1/4 in
Max. Ram Advance Speed
0.18 in/sec
Pressure
10,000 psi
Color
Yellow
Adjustable Bed
Adjustable
Series
XLP
Maximum Vertical Daylight
37.8 in
Power Source Type
Air
Cylinder Model Number
RC506
Operation
Manual
Maximum Ram Press Speed
0.02 in/sec
Ram-to-Table Distance - Minimum
8 1/4 in
Ram-to-Table Distance - Maximum
37 3/4 in
Maximum Ram Advance Speed
0.18 in/sec
Pump Model Number
XA12G
Capacity
50 ton

Description

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 50 ton, Cylinder Type Single Acting
