Shop ENERPAC

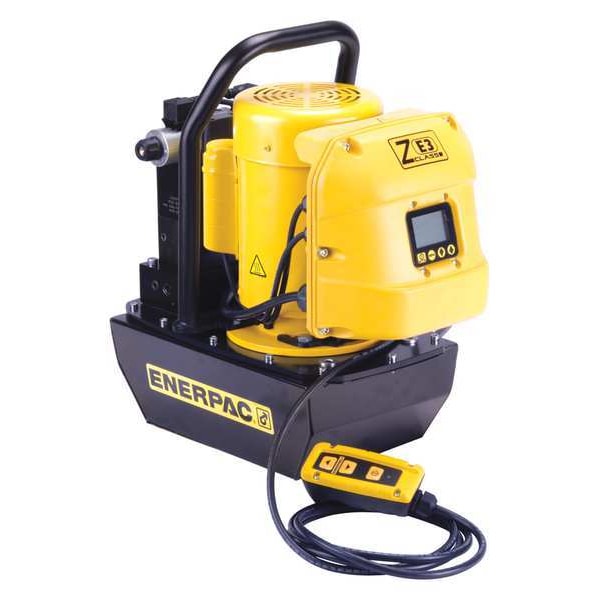

Hydraulic Pump, Electric, 1.5 hp, Induction Motor, 10,000 psi Max Pressure

  • Mfr # ZE4420SB

  • Zoro # G2230341

product price:
$
13,522.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Type
Electric
Reservoir Capacity (Cu.-In.)
1,155 cu in
Reservoir Capacity (Gal.)
5 gal
Oil Displacement @ 100 PSI
650 cu in/min
Oil Displacement @ 700 PSI
600 cu in/min
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZE4420SB
Zoro #
G2230341
UPC #
662005130535
Country of Origin
United States
Item
Hydraulic Pump
Type
Electric
Reservoir Capacity (Cu.-In.)
1,155 cu in
Reservoir Capacity (Gal.)
5 gal
Oil Displacement @ 100 PSI
650 cu in/min
Oil Displacement @ 700 PSI
600 cu in/min
Oil Displacement @ 1000 PSI
625 cu in/min
Oil Displacement @ 5000 PSI
62 cu in/min
Oil Displacement @ 10,000 PSI
60 cu in/min
Oil Displacement @ 0-200 PSI
645 cu in/min
HP
1.5 hp
Maximum Pressure
10,000 psi
Motor Type
Induction
Control Valve
Remote 4 Way/3 Position Tandem Center
Reservoir Material
Steel
Includes
LCD Display
Voltage
115
Fluid Port NPT (In.)
3/8
Application
Production and Lifting
dBA
75
Relief Valve Range
1000 to 10,000 psi
Oil Displacement @ 200-10,000 PSI
60 to 645 cu in/min
Control Pendant Voltage
24V DC
Amps AC
13.6 A
Charger Input Voltage
115V AC
Oil Displacement @ 5000 psi
62 cu in/min
Flow Rate - Maximum
60 cu in/min
Nameplate Voltage
115V AC
Displacement @ 10,000 PSI
60 cu in/min
Control Valve Pressure Relief - Minimum
1,000 psi
Displacement @ 1000 psi
625 cu in/min
Reservoir Capacity
5 gal
Displacement @ 700 psi
600 cu in/min
Displacement @ 5000 psi
62 cu in/min
Control Valve Pressure Relief - Maximum
10,000 psi
Horsepower - Maximum
1 1/2 hp
Control Valve Function
Advance, Hold, Retract
Displacement @ 100 psi
650 cu in/min
Phase
Single
Operating Pressure - Maximum
10,000 psi
Sound Level - Maximum
75 dBA
Frequency
50 Hz, 60 Hz
Media Intake Connection Type
NPTF
Current
19 A
Control Valve Type
3-Position, 4-Way, Tandem Center
Duty Cycle
Continuous
Displacement @ 200 psi
645 cu in/min
Cylinder Compatibility
Double Acting

Description

Hydraulic Pump, Horsepower - Maximum 1 1/2 hp, Nameplate Voltage 115V AC, Duty Cycle Continuous, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 62 cu in/min, Displacement @ 10,000 PSI 60 cu in/min, Control Valve Type 3-Position, 4-Way, Tandem Center, Reservoir Capacity 5 gal, Reservoir Material Steel, Overall Height 24.6 in, Cylinder Compatibility Double Acting, Charger Input Voltage 115V AC, Control Pendant Size 10 ft, Control Pendant Voltage 24V DC
