  11. Hydraulic Pump, Electric, 1.7 hp, Universal Motor, 10,000 psi Max Pressure

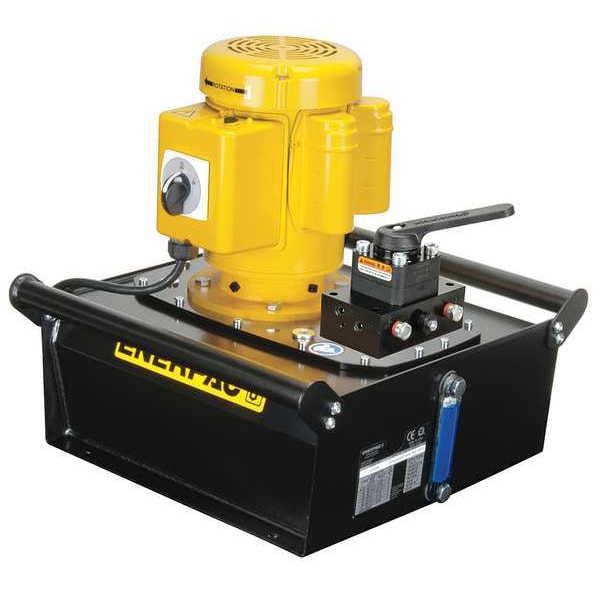

Enerpac Hydraulic Pump, Electric, 1.7 hp, Universal Motor, 10,000 psi Max Pressure ZU4104DB - main

Hydraulic Pump, Electric, 1.7 hp, Universal Motor, 10,000 psi Max Pressure

  • Mfr # ZU4104DB

  • Zoro # G2855907

product price: $7,820.99
/ea
Free Shipping & Returns

Key Features

Type
Electric
Reservoir Capacity (Cu.-In.)
231 cu in
Reservoir Capacity (Gal.)
1 gal
Oil Displacement @ 100 PSI
700 cu in/min
Oil Displacement @ 700 PSI
535 cu in/min
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZU4104DB
Zoro #
G2855907
UPC #
662005127221
Country of Origin
United States

Dimensions

Control Pendant Size (Ft.)
10 ft
Overall Width
12.5 in
Overall Height
16.7 in
Media Intake Connection Size
1/2 in
Overall Length
25 in
Control Pendant Size
10 ft

Details

Item
Hydraulic Pump
Type
Electric
Reservoir Capacity (Cu.-In.)
231 cu in
Reservoir Capacity (Gal.)
1 gal
Oil Displacement @ 100 PSI
700 cu in/min
Oil Displacement @ 700 PSI
535 cu in/min
Oil Displacement @ 1000 PSI
500 cu in/min
Oil Displacement @ 5000 PSI
76 cu in/min
Oil Displacement @ 10,000 PSI
60 cu in/min
Oil Displacement @ 0-200 PSI
675 cu in/min
HP
1.7 hp
Maximum Pressure
10,000 psi
Motor Type
Universal
Application
Construction, Post-Tensioning and Foundation Repair
Control Valve
Remote 3 Way/2 Position Dump
Amps AC
22 A
Fluid Port NPT (In.)
3/8
Control Pendant Voltage
24V DC
Voltage
115
dBA
85 to 90
Includes
LCD Display
Relief Valve Range
1000 to 10,000 psi
Oil Displacement @ 200-10,000 PSI
60 to 675 cu in/min
Reservoir Material
Steel
Charger Input Voltage
115V AC
Oil Displacement @ 5000 psi
76 cu in/min
Current
22 A
Frequency
50 Hz, 60 Hz
Sound Level - Minimum
85 dBA
Nameplate Voltage
115V AC
Reservoir Capacity
277 cu in
Displacement @ 10,000 PSI
60 cu in/min
Operating Pressure - Maximum
10,000 psi
Horsepower - Maximum
1 7/10 hp
Displacement @ 5000 psi
76 cu in/min
Duty Cycle
Intermittent
Media Intake Connection Type
NPTF
Control Valve Pressure Relief - Maximum
10,000 psi
Flow Rate - Maximum
60 cu in/min
Control Valve Type
2-Position, 3-Way
Phase
Single
Control Valve Function
Advance, Retract
Displacement @ 700 psi
535 cu in/min
Displacement @ 1000 psi
500 cu in/min
Cylinder Compatibility
Single Acting
Displacement @ 100 psi
700 cu in/min
Control Valve Pressure Relief - Minimum
2,000 psi
Displacement @ 200 psi
675 cu in/min
Sound Level - Maximum
90 dBA

Description

Hydraulic Pump, Horsepower - Maximum 1 7/10 hp, Nameplate Voltage 115V AC, Duty Cycle Intermittent, Phase Single, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 76 cu in/min, Displacement @ 10,000 PSI 60 cu in/min, Control Valve Type 2-Position, 3-Way, Reservoir Capacity 277 cu in, Reservoir Material Steel, Overall Height 16.7 in, Cylinder Compatibility Single Acting, Charger Input Voltage 115V AC, Control Pendant Size 10 ft, Control Pendant Voltage 24V DC
