Shop ENERPAC

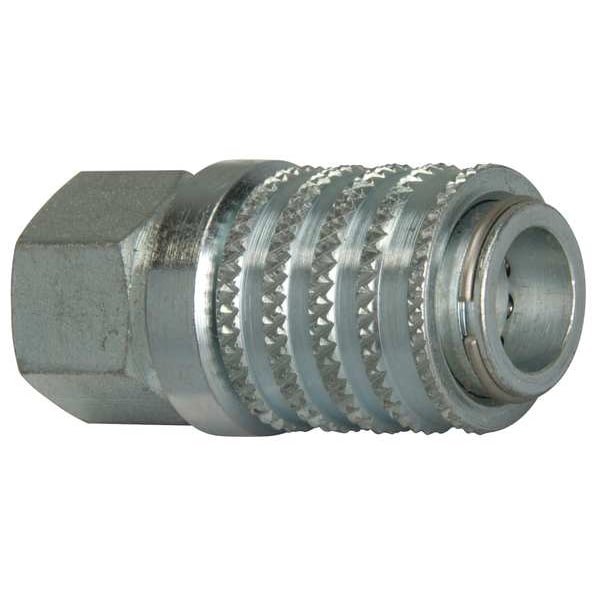

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 1/4"-18 Thread Size

  • Mfr # AR650

  • Zoro # G0687547

product price:  $139.99
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Max. Flow
17 cu in/min
Seal Material
Buna-N
Coupling Locking Type
Push-to-Connect
Max. Pressure
5000 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AR650
Zoro #
G0687547
UPC #
662005201198
Country of Origin
United States

Dimensions

Thread Size
1/4"-18
Coupler Thread Size
1/4"-18
Overall Length
2 1/8 in
Max. Outside Dia.
1 in
Coupling Size
1/4 in
Wire Rope Length
2 1/8 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Max. Flow
17 cu in/min
Seal Material
Buna-N
Coupling Locking Type
Push-to-Connect
Max. Pressure
5000 psi
Type
Female Half
Connection Type
Threaded
For Use With
Hydraulic Systems
Sleeve Material
Steel
Series
Regular
Quick Coupler Type
Hydraulic Coupler Body
Valve Design
Flush Face
Coupler Connection Type
NPTF
Operating Temp. Range
-40 Degrees to 250 Degrees F
Coupler Finish
Chrome Plated
Coupler Interchange Type
SPEE-D
Coupler Flow Rate
4.0 gpm
Parker Interchange
PD242
Locking Mechanism
Ball Detent
Coupler Body Material
Steel
Coupling Component
Socket
Max. Working Pressure @ 70 F
5,000 psi
Includes Bearing
No
Includes Valve
Yes
Max. Flow Rate
3.02 lpm
Hose Fitting Gender
Female
Includes Shut Off
Yes
Finish/Coating
Zinc Plated
Valve Type
Flat Face
Fitting Type
Female NPTF
Operating Temperature - Minimum
-40 Degrees F
Standards
ISO 15171-1, SAE J1502
Operating Temperature - Maximum
250 Degrees F

Description

Hydraulic Quick Connect Hose Coupling, Socket, Regular Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 3.02 lpm
