Enerpac

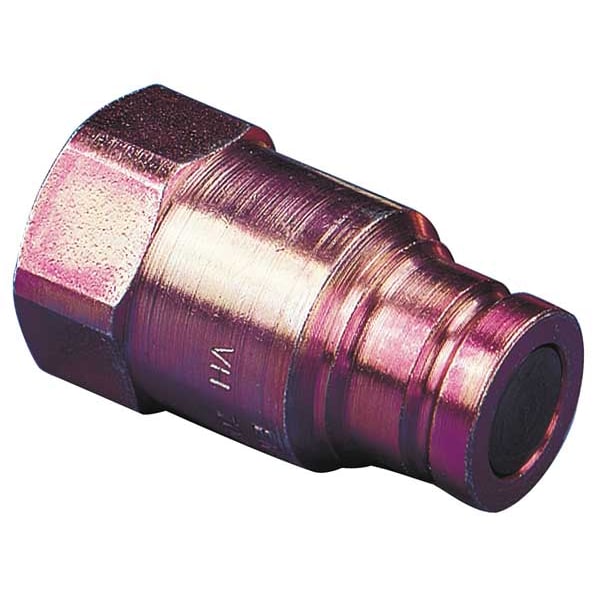

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/8"-18 Thread Size

product price: $109.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Quick Coupler Type Hydraulic Coupler Nipple
  • Coupler Interchange Type Flush Face
  • Max. Flow 2500 cu in/min
  • Connection Type NPTF
See all product information

Product Information

Dimensions

Coupler Thread Size 3/8"-18
Thread Size 3/8"-18
Length 2-1/2"
Overall Length 2 1/8 in
Coupling Size 3/8 in
Max. Outside Dia. 1 1/4 in

Details

Promotion Restriction Not eligible for promotion
Quick Coupler Type Hydraulic Coupler Nipple
Item Hydraulic Quick Connect Hose Coupling
Coupler Interchange Type Flush Face
Max. Flow 2500 cu in/min
Connection Type NPTF
Coupler Flow Rate 6.0 gpm
Max. Pressure 10,000 psi
Coupler Body Material Steel
Sleeve Material Steel
Coupler Finish Plain
Series Flush-Face
Body Material Steel
Coupling Locking Type Push-to-Connect
Includes 2 in 1 Dust Cap for use on Male and Female Halves
Operating Temp. Range -25 Degrees to 375 Degrees F
Standards HTMA Recognized
Coupler Connection Type NPTF
For Use With Hydraulic Systems
Seal Type Flush Face
Locking Mechanism Push together
Valve Design Flush Face
Seal Material Nitrile, PTFE
Type Male Half
Hose Fitting Gender Male
Finish/Coating Zinc Plated
Valve Type Flush Face
Includes Shut Off Yes
Max. Flow Rate 40.97 lpm
Coupling Component Plug
Fitting Type Male NPTF
Includes Valve Yes
Includes Bearing No
Max. Working Pressure @ 70 F 10,000 psi

Description

Hydraulic Quick Connect Hose Coupling, Plug, Flush-Face Series, Steel, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 40.97 lpm
