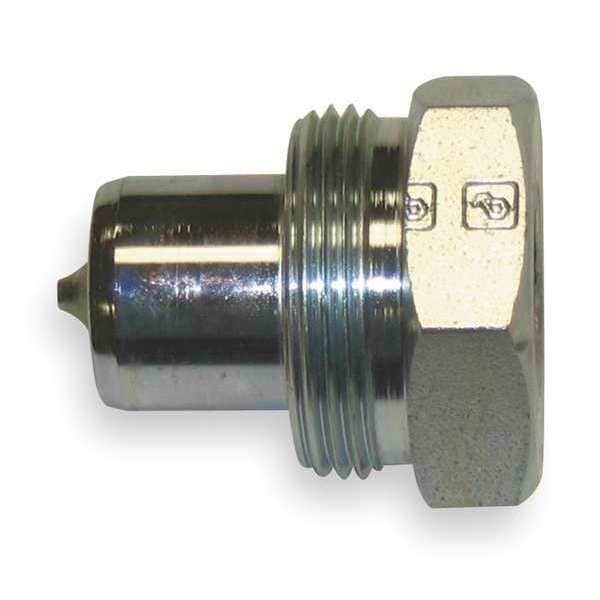

Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 3/8"-18 Thread Size

Mfr # CH604
Zoro # G2364747

78.75

Zoro's best price: not eligible for any other offers or promotions

Key Features

Body Material

Steel

Max. Flow

2500 cu in/min

Seal Material

Buna-N

Coupling Locking Type

Sleeve

Max. Pressure

10,000 psi

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: CH604
Zoro #: G2364747
UPC #: 662005201174
Country of Origin: China

Dimensions

Thread Size: 3/8"-18
Length: 1 3/8 in
Coupler Thread Size: 3/8"-18
Overall Length: 1 3/8 in
Max. Outside Dia.: 1 3/8 in
Coupling Size: 3/8 in
Wire Rope Length: 1 3/8 in

Details

Item: Hydraulic Quick Connect Hose Coupling
Body Material: Steel
Max. Flow: 2500 cu in/min
Seal Material: Buna-N
Coupling Locking Type: Sleeve
Max. Pressure: 10,000 psi
Type: Male Half
Connection Type: Threaded
For Use With: Hydraulic Systems
Sleeve Material: Steel
Includes: Dust Cap
Series: SPEE-D
Coupler Connection Type: NPTF
Valve Design: High Flow
Coupler Flow Rate: 10.8 gpm
Standards: ISO 4413:2011
Locking Mechanism: Sleeve
Coupler Finish: Zinc Plated
Quick Coupler Type: Hydraulic Coupler Nipple
Coupler Body Material: Steel
Max. Flow Rate: 35 lpm
Valve Type: Poppet
Includes Valve: Yes
Includes Shut Off: Yes
Coupling Component: Plug
Fitting Type: Male NPTF
Max. Working Pressure @ 70 F: 10,000 psi
Hose Fitting Gender: Male
Includes Bearing: No
Finish/Coating: Zinc Plated
Operating Temperature - Minimum: -40 Degrees F
Operating Temperature - Maximum: 250 Degrees F

Description

Hydraulic Quick Connect Hose Coupling, Plug, High Flow Series, Steel, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 35 lpm
