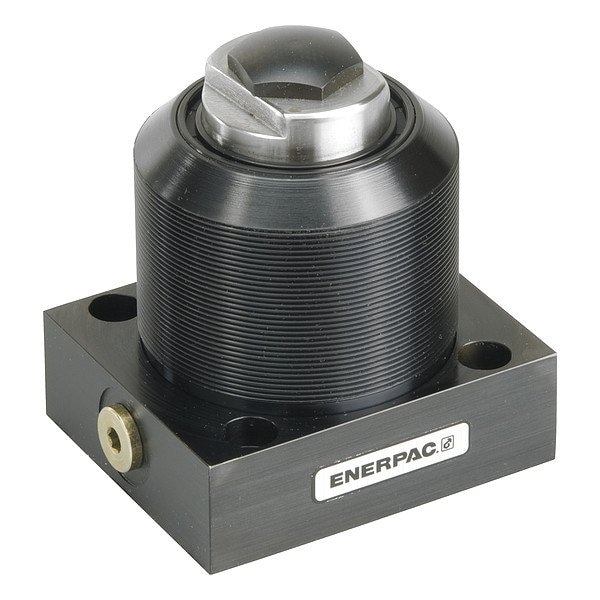

Hydraulic work support
Mfr # WFL441
Zoro # G215487471
product price:Â
$
1,005.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Includes
Contact Bolt
Stroke Length
13/20 in
Function
Hydraulic Advance
Outside Dia.
3 37/100 in
Body Thread
3.37 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WFL441
- Zoro #
- G215487471
- UPC #
- 0662005129393
- Country of Origin
- United States
Dimensions
- Stroke Length
- 13/20 in
- Outside Dia.
- 3 37/100 in
- Extended Height
- 5.09 in
- Oil Port Size
- #4 SAE
- Plunger Dia.
- 2.17 in
- Retracted Height
- 4.44 in
Details
- Item
- Hydraulic Work Support
- Includes
- Contact Bolt
- Function
- Hydraulic Advance
- Body Thread
- 3.37 in
- Plunger Contact Spring Force Extended
- 3.3 lbf
- Max. Oil Flow
- 300 cu in/min
- Pressure Range
- 700 to 5,000 psi
- Oil Capacity
- 0.3 cu in
- Plunger Contact Spring Force Retracted
- 22 lbf
- Max. Support Force
- 10,000 lbf
- Material
- Bronze
- Mounting Style
- Lower Flange
Description
Hydraulic Work Support, Lower Flange, Bronze, Max. Support Force 10,000 lbf, Stroke Length 13/20 in, Pressure Range 700 to 5,000 psi, Retracted Height 4.44 in, Body Thread 3.37 in, Plunger Contact Spring Force Extended 3.3 lbf, Plunger Contact Spring Force Retracted 22 lbf, Oil Capacity 0.3 cu in, Max. Oil Flow 300 cu in/min, Oil Port Size #4 SAE, Extended Height 5.09 in, Outside Dia. 3 37/100 in, Plunger Dia. 2.17 in, Includes Contact Bolt
