  5. IPA3071, 30 Ton, H-Frame Hydraulic Press with RR3014 Double-Acting Cylinder and PAM1042 Air Pump

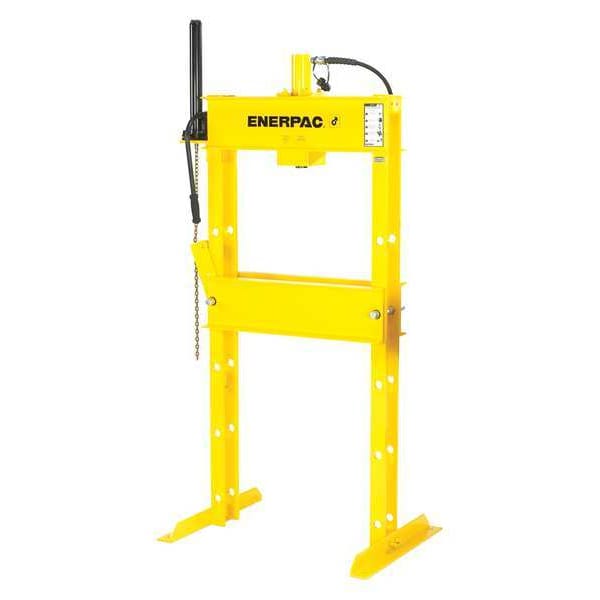

Enerpac IPA3071, 30 Ton, H-Frame Hydraulic Press with RR3014 Double-Acting Cylinder and PAM1042 Air Pump IPA3071 - main

IPA3071, 30 Ton, H-Frame Hydraulic Press with RR3014 Double-Acting Cylinder and PAM1042 Air Pump

  • Mfr # IPA3071

  • Zoro # G3484848

product price:  $17,546.99
/ea
Item requires special delivery charges. A $245.00 per item surcharge will be applied.

Key Features

Frame Capacity
30 ton
Frame Type
H-Frame
Cylinder Stroke
14 in
Pump Type
Air
Base Length
40 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPA3071
Zoro #
G3484848
UPC #
662005406555
Country of Origin
United States

Dimensions

Base Length
40 in
Base Width
40 1/2 in
Overall Height
89 1/4 in
Working Height
81"
Bed Height
54.5"
Total Height
81"
Total Width
40"
Hose Length
6 ft
Working Width
40"
Width Between Table Channels
4 in
Overall Length
30 in
Overall Width
40 1/2 in
Overall Depth
30 in
Maximum Bed Width
29 in
Hydraulic Hose Length
6 ft
Press Bed Depth
4 in
Press Bed Width
29 in
Base Depth
30 in

Details

Frame Capacity
30 ton
Frame Type
H-Frame
Cylinder Stroke
14 in
Pump Type
Air
Cylinder
Mfr. No. RR-3014
Ram Travel
10"
Cylinder Type
Double Acting
Item
Hydraulic Press
Strokes to Extend Piston 1 In
0.6
Application
Pressing Bearings
Reservoir Capacity
2 gal
Features
Welded Frame
Pump
Mfr. No. PAM-1042
Includes
Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose
Max. Ram Advance Speed
0.6 in/sec
Max. Ram-to-Table Distance
54-1/2 in
Distance Between Uprights
29 in
For Use With
Cylinder Mfr. No. RR3014
Adjustable Bed
Adjustable
Max. Ram Press Speed
43 in/sec
Stroke
0.6 in
Pressure
10,000 psi, 30 tons
Operating Pressure
10,000 psi
Maximum Vertical Daylight
54.5 in
Series
IP
Power Source Type
Air
Cylinder Model Number
RR3014
Operation
Air
Ram-to-Table Distance - Maximum
54 1/2 in
Maximum Ram Press Speed
43 in/sec
Capacity
30 ton
Ram-to-Table Distance - Minimum
7 in
Pump Model Number
PAM1042
Maximum Ram Advance Speed
0.6 in/sec

Description

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 30 ton, Cylinder Type Double Acting
