  5. IPE5010, 50 Ton, H-Frame Hydraulic Press, RC5013 Single-Acting Cylinder and ZE4320SBN Electric Pump
Enerpac IPE5010, 50 Ton, H-Frame Hydraulic Press, RC5013 Single-Acting Cylinder and ZE4320SBN Electric Pump IPE5010 - main

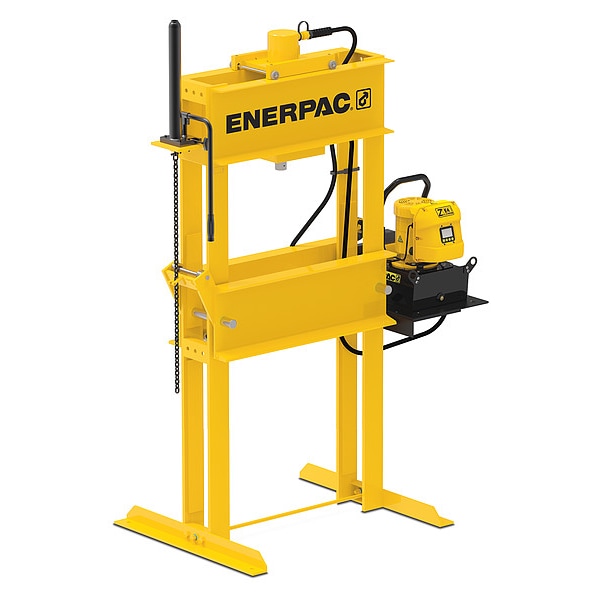

IPE5010, 50 Ton, H-Frame Hydraulic Press, RC5013 Single-Acting Cylinder and ZE4320SBN Electric Pump

  • Mfr # IPE5010

  • Zoro # G3484735

product price:  $27,061.99
/ea
Additional $365.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
13 in
Pump Type
Electric
Base Length
44 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPE5010
Zoro #
G3484735
UPC #
662005406586
Country of Origin
United States

Dimensions

Base Length
44 in
Base Width
42 3/4 in
Overall Height
84 3/4 in
Total Height
82"
Working Height
82"
Total Width
44"
Bed Height
48.56"
Working Width
44"
Hose Length
6 ft
Overall Width
42 3/4 in
Overall Length
36 in
Width Between Table Channels
5 in
Overall Depth
36 in
Maximum Bed Width
28.75 in
Hydraulic Hose Length
6 ft
Press Bed Depth
5 in
Press Bed Width
28 3/4 in
Base Depth
36 in

Details

Frame Capacity
50 ton
Frame Type
H-Frame
Cylinder Stroke
13 in
Pump Type
Electric
Reservoir Capacity
5 gal
Includes
Cylinder, Gauge, Hoses, Pump
Application
Pressing Bearings
Cylinder Type
Single Acting
Cylinder
Mfr. No. RC-5013
Strokes to Extend Piston 1 In
1
Ram Travel
10"
Pump
Mfr. No. ZE4320SB-N
Features
Welded Frame
Item
Hydraulic Press
Capacity
50 ton
For Use With
Cylinder Mfr. No. RC5013
Max. Ram-to-Table Distance
48.56 in
Stroke
1 in
Pressure
10,000 psi, 50 tons
Distance Between Uprights
28 3/4 in
Adjustable Bed
Adjustable
Max. Ram Advance Speed
1.02 in/sec
Max. Ram Press Speed
11.04 in/sec
Operating Pressure
10,000 psi
Series
IP
Power Source Type
Electric
Maximum Vertical Daylight
48.56 in
Pump Model Number
ZE4320SBN
Ram-to-Table Distance - Minimum
7 in
Maximum Ram Press Speed
11.04 in/sec
Maximum Ram Advance Speed
1.02 in/sec
Cylinder Model Number
RC5013
Operation
Electric
Ram-to-Table Distance - Maximum
48 1/2 in

Description

Hydraulic Press, Pump Type Electric, Frame Type H-Frame, Frame Capacity 50 ton, Cylinder Type Single Acting
