  9. IPH1240, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and P392 Hand Pump

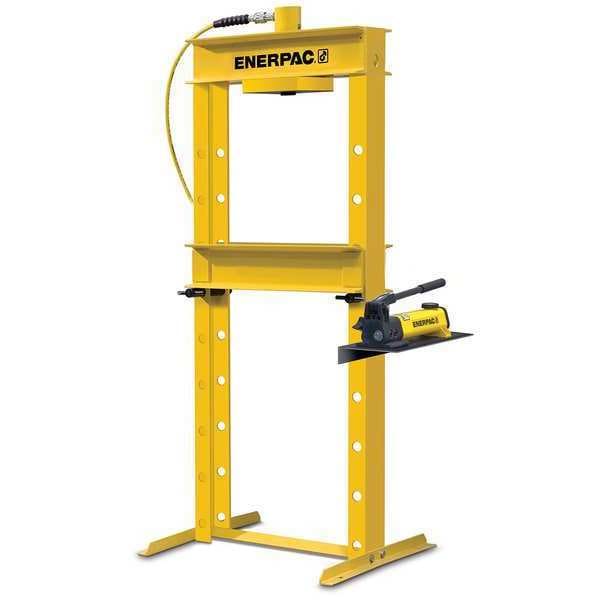

Enerpac IPH1240, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and P392 Hand Pump IPH1240 - main

IPH1240, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and P392 Hand Pump

  • Mfr # IPH1240

  • Zoro # G3443277

product price: $4,173.99
/ea
Item requires special delivery charges. A $80.00 per item surcharge will be applied.

Key Features

Frame Capacity
10 ton
Frame Type
H-Frame
Cylinder Stroke
10 in
Pump Type
Manual
Base Length
25 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPH1240
Zoro #
G3443277
UPC #
662005406487
Country of Origin
United States

Dimensions

Base Length
25 in
Base Width
42 3/4 in
Overall Height
52 in
Total Height
52"
Working Width
18-1/2"
Total Width
25"
Bed Height
40"
Working Height
40"
Overall Length
29-3/4 in
Overall Width
42 3/4 in
Overall Depth
36 in
Maximum Bed Width
18.63 in
Press Bed Depth
7 1/2 in
Base Depth
36 in
Hydraulic Hose Length
6 ft
Press Bed Width
18 5/8 in

Details

Frame Capacity
10 ton
Frame Type
H-Frame
Cylinder Stroke
10 in
Pump Type
Manual
Strokes to Extend Piston 1 In
4
Cylinder Type
Single Acting
Application
Pressing Bearings
Ram Travel
6"
Reservoir Capacity
55 cu in
Pump Handle Effort @ Rated Capacity (Lb.)
93 lb.
Item
Hydraulic Press
Features
For Intermittent Use;Heavy Duty Welded Construction
Includes
Gauge Adaptor, General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force and Pressure Gauge, Hydraulic Hand Pump
Pump
Mfr. No. P-392
Cylinder
Mfr. No. RC-1010
Max. Ram Press Speed
15 in/sec
Pressure
10 tons/10,000 psi
Max. Ram-to-Table Distance
40 in
Distance Between Uprights
18 5/8 in
Max. Ram Advance Speed
4 in/sec
Stroke
10 in
Adjustable Bed
Adjustable
For Use With
Cylinder Mfr. No. RC1010
Operating Pressure
10,000 psi
Maximum Vertical Daylight
40 in
Power Source Type
Manual
Series
IP
Ram-to-Table Distance - Minimum
2 1/2 in
Operation
Manual
Capacity
10 ton
Maximum Ram Press Speed
15 in/sec
Pump Model Number
P392
Maximum Ram Advance Speed
4 in/sec
Cylinder Model Number
RC1010
Ram-to-Table Distance - Maximum
40 in

Description

Hydraulic Press, Pump Type Manual, Frame Type H-Frame, Frame Capacity 10 ton, Cylinder Type Single Acting
