  9. IPH2531, 25 Ton, H-Frame Hydraulic Press with RC2514 Single-Acting Cylinder and P80 Hand Pump

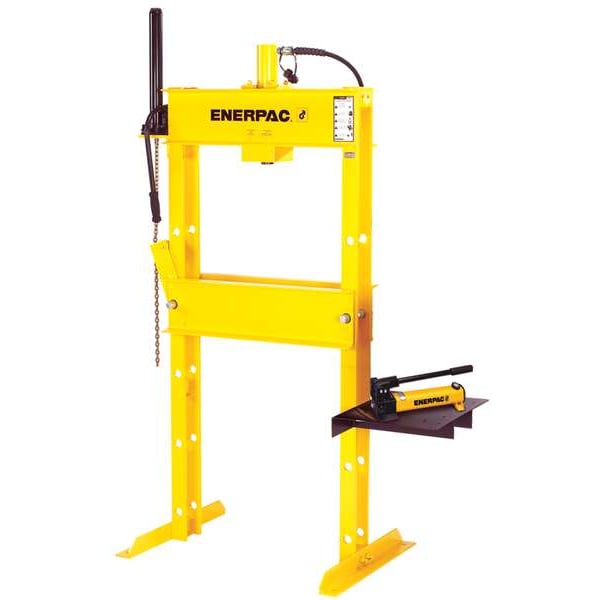

Enerpac IPH2531, 25 Ton, H-Frame Hydraulic Press with RC2514 Single-Acting Cylinder and P80 Hand Pump IPH2531 - main

IPH2531, 25 Ton, H-Frame Hydraulic Press with RC2514 Single-Acting Cylinder and P80 Hand Pump

  • Mfr # IPH2531

  • Zoro # G3443268

product price: $12,519.99
/ea
Item requires special delivery charges. A $245.00 per item surcharge will be applied.

Key Features

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
14 in
Pump Type
Manual
Base Length
40-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IPH2531
Zoro #
G3443268
UPC #
662005406548
Country of Origin
United States

Dimensions

Base Length
40-1/2 in
Base Width
42 3/4 in
Overall Height
89 1/4 in
Working Height
7 to 54-1/2"
Total Width
40-1/2"
Total Height
76"
Bed Height
54.5"
Working Width
29"
Overall Length
30 in
Overall Width
42 3/4 in
Width Between Table Channels
4 in
Overall Depth
36 in
Maximum Bed Width
29 in
Hydraulic Hose Length
6 ft
Press Bed Width
29 in
Base Depth
36 in
Press Bed Depth
10 3/4 in

Details

Frame Capacity
25 ton
Frame Type
H-Frame
Cylinder Stroke
14 in
Pump Type
Manual
Cylinder
Mfr. No. RC-2514
Includes
Gauge Adaptor, General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic Force and Pressure Gauge, Hydraulic Hand Pump
Application
Pressing Bearings
Item
Hydraulic Press
Pump Handle Effort @ Rated Capacity (Lb.)
77 lb.
Pump
Mfr. No. P-80
Ram Travel
6"
Strokes to Extend Piston 1 In
5
Reservoir Capacity
134 cu in
Cylinder Type
Single Acting
Features
For Intermittent Use;Heavy Duty Welded Construction
Max. Ram Advance Speed
5 in/sec
Max. Ram-to-Table Distance
54-1/2 in
Stroke
5 in
For Use With
Cylinder Mfr. No. RC2514
Distance Between Uprights
29 in
Max. Ram Press Speed
34 in/sec
Adjustable Bed
Adjustable
Pressure
10,000 psi, 25 tons
Operating Pressure
10,000 psi
Maximum Vertical Daylight
54.5 in
Series
IP
Power Source Type
Manual
Cylinder Model Number
RC2514
Capacity
25 ton
Pump Model Number
P80
Maximum Ram Advance Speed
5 in/sec
Ram-to-Table Distance - Maximum
54 1/2 in
Operation
Manual
Ram-to-Table Distance - Minimum
7 in
Maximum Ram Press Speed
34 in/sec

Description

Hydraulic Press, Pump Type Manual, Frame Type H-Frame, Frame Capacity 25 ton, Cylinder Type Single Acting
