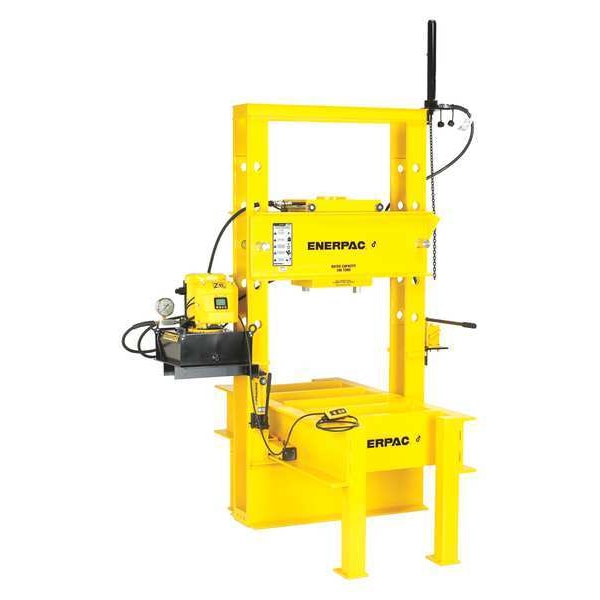

Enerpac IPR20075, 200 Ton Roll Frame Hydraulic Press, RR20013 Double-Acting Cylinder, ZE5420SGN Pump IPR20075 - main

IPR20075, 200 Ton Roll Frame Hydraulic Press, RR20013 Double-Acting Cylinder, ZE5420SGN Pump

  • Mfr # IPR20075

  • Zoro # G3484717

product price: $125,316.99
/ea
Item requires special delivery charges. A $2,220.00 per item surcharge will be applied.

Key Features

Frame Capacity
200 ton
Frame Type
Roll Frame
Cylinder Stroke
13 in
Pump Type
Electric
Base Length
84-5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IPR20075
Zoro #
G3484717
UPC #
662005406784
Country of Origin
United States

Dimensions

Base Length
84-5/8 in
Base Width
84 5/8 in
Overall Height
126 in
Total Height
125.96"
Working Height
126"
Bed Height
36"
Total Width
84-1/2"
Hose Length
10 ft
Working Width
86-1/2"
Overall Width
84 5/8 in
Width Between Table Channels
9 1/8 in
Overall Length
86-1/2 in
Overall Depth
86 1/2 in
Maximum Bed Width
48 in
Press Bed Depth
9 1/8 in
Hydraulic Hose Length
10 ft
Press Bed Width
48 in
Base Depth
86 1/2 in

Details

Frame Capacity
200 ton
Frame Type
Roll Frame
Cylinder Stroke
13 in
Pump Type
Electric
Item
Hydraulic Press
Includes
Cylinder, Gauge, Hoses, Pump
Cylinder
Mfr. No. RR-20013
Reservoir Capacity
5 gal
Application
Pressing Bearings
Features
Welded Frame
Cylinder Type
Double Acting
Strokes to Extend Piston 1 In
1.5
Pump
Mfr. No. ZE5420SG-N
Ram Travel
10"
Max. Ram-to-Table Distance
51 in
Adjustable Bed
Adjustable
For Use With
Cylinder Mfr. No. RR20013
Distance Between Uprights
48 in
Pressure
10,000 psi, 200 tons
Max. Ram Advance Speed
3.1 in/min
Stroke
1-1/2 in
Max. Ram Press Speed
22.1 in/min
Operating Pressure
10,000 psi
Series
IPR
Maximum Vertical Daylight
51 in
Maximum Ram Press Speed
22.1 in/min
Cylinder Model Number
RR20013
Maximum Ram Advance Speed
3.1 in/min
Pump Model Number
ZE5420SGN
Capacity
200 ton
Operation
Electric
Ram-to-Table Distance - Minimum
11 in
Ram-to-Table Distance - Maximum
51 in

Description

Hydraulic Press, Pump Type Electric, Frame Type Roll Frame, Frame Capacity 200 ton, Cylinder Type Double Acting
