  11. P84, Two Speed, ULTIMA Steel Hydraulic Hand Pump, 134 in3 Usable Oil, For Double-Acting Cylinders
Shop All Hydraulic Hand Pumps
Enerpac

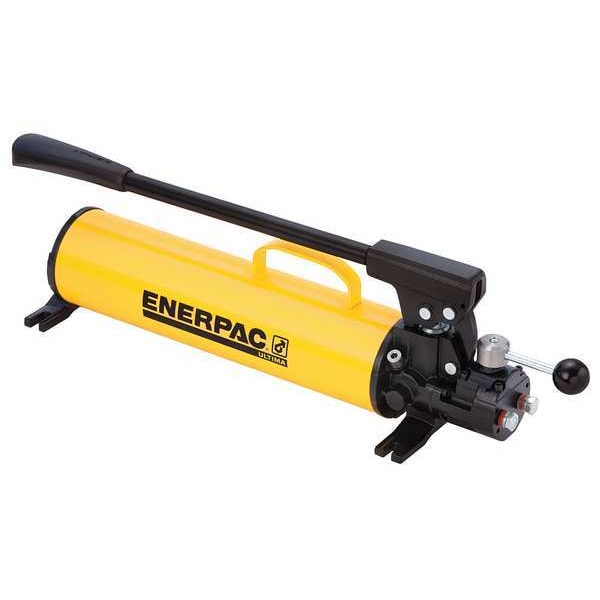

P84, Two Speed, ULTIMA Steel Hydraulic Hand Pump, 134 in3 Usable Oil, For Double-Acting Cylinders

product price: $1,839.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Number of Stages 2
  • Max. Pressure 1st Stage 500 psi
  • Max. Pressure 2nd Stage 10,000 psi
  • Max. Handle Effort 77 lb
See all product information

Product Information

Dimensions

Port Size 3/8 in NPT
Overall Length 20.1 in
Overall Width 5.9 in
Overall Height 7.7 in
Connection Size 3/8 in

Details

Promotion Restriction Not eligible for promotion
Item Hydraulic Hand Pump
Number of Stages 2
Max. Pressure 1st Stage 500 psi
Max. Pressure 2nd Stage 10,000 psi
Max. Handle Effort 77 lb
Displacement per Stroke 1st Stage 1 cu in
Displacement per Stroke 2nd Stage 0.2 cu in
Reservoir Capacity 134 cu in
Handle Material Fiberglass
Pump Material Steel
Reservoir Material Steel
Oil Included Yes
Max. Pressure 10,000 psi
Includes Oil
Cylinder Compatibility Double Acting
Housing Material Steel
Pressure 1st Stage - Maximum 500 psi
Handle Effort - Maximum 77 lb
Pressure 2nd Stage - Maximum 10,000 psi
Flow Rate - Maximum 0.15 cu in/min
Connection Type NPT
Type Manual

Description

Hydraulic Hand Pump, Reservoir Capacity 134 cu in, Connection Size 3/8 in, Number of Stages 2, Pressure 1st Stage - Maximum 500 psi, Pressure 2nd Stage - Maximum 10,000 psi, Displacement per Stroke 1st Stage 1 cu in, Displacement per Stroke 2nd Stage 0.2 cu in, Handle Effort - Maximum 77 lb, Housing Material Steel, Handle Material Fiberglass, Connection Type NPT, Cylinder Compatibility Double Acting, Flow Rate - Maximum 0.15 cu in/min, Includes Oil, Overall Height 7.7 in, Overall Length 20.1 in
