  11. PAMG1405N, Turbo II Air Hydraulic Pump, 4/3 Manual Valve, 230 in3 Oil, For Double-Acting Cylinders
Shop All Air Hydraulic Pumps
Enerpac

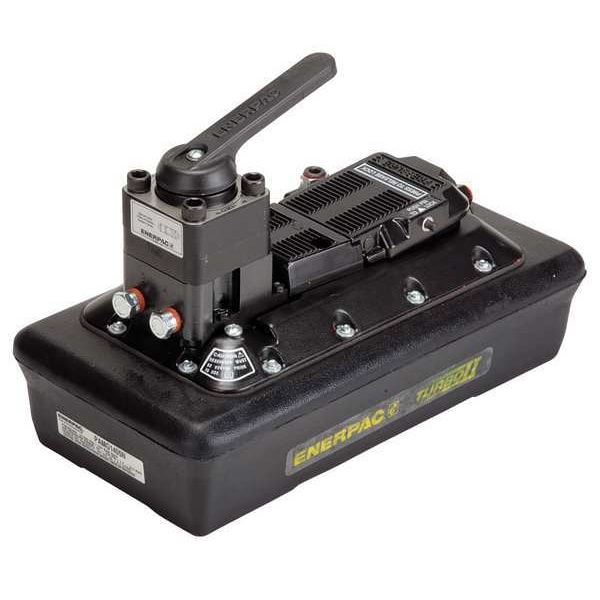

PAMG1405N, Turbo II Air Hydraulic Pump, 4/3 Manual Valve, 230 in3 Oil, For Double-Acting Cylinders

product price: $1,862.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Oil Capacity (Cu.-In.) 230 cu in
  • Reservoir Capacity (Gal.) 1 gal
  • Oil Displacement @ 0 PSI 60.00 cu in/min
  • Oil Displacement @ 10,000 PSI 10 cu in/min
See all product information

Product Information

Dimensions

Height (In.) 10.5 in
Length (In.) 9 in
Width (In.) 7.9375 in
Media Intake Connection Size 3/8 in
Air Intake Connection Size 1/4 in
Overall Height 10.5 in
Overall Length 9 in
Overall Width 7.9 in

Details

Promotion Restriction Not eligible for promotion
Item Hydraulic Pump
Oil Capacity (Cu.-In.) 230 cu in
Reservoir Capacity (Gal.) 1 gal
Oil Displacement @ 0 PSI 60.00 cu in/min
Oil Displacement @ 10,000 PSI 10 cu in/min
Operating Air PSI 125
Oil Displacement @ 5000 PSI 24 cu in/min
Air Consumption (SCFM) 12
Actuation Type Pendant
Built-In Pressure Relief Valve
Usable Oil Capacity Horizontal Mount 230 cu in
Type Air Powered
Capacity (PSI) 10,000
Usable Oil Capacity Vertical Mount 230 cu in
Air Inlet NPT (In.) 1/4-18
Fluid Port NPT (In.) 3/8-18
Includes Treadle
dBA 76
Features Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Treadle 4-way, 3-position, Tandem Center
Oil Displacement @ 5000 psi 24 cu in/min
Air Intake Connection Type FNPT
Operating Pressure - Maximum 10,000 psi
Sound Level - Maximum 76 dBA
Displacement @ 5000 psi 24 cu in/min
Reservoir Capacity 230 cu in
Control Valve Type 3-Position, 4-Way, Tandem Center
Air Intake Pressure - Maximum 125 psi
Control Valve Function Advance, Hold, Retract
Flow Rate - Maximum 10 cu in/min
Air Consumption - Maximum 12 scfm

Description

Hydraulic Pump, Reservoir Capacity 230 cu in, Air Intake Pressure - Maximum 125 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 24 cu in/min, Displacement @ 10,000 PSI 10 cu in/min, Sound Level - Maximum 76 dBA, Control Valve Type 3-Position, 4-Way, Tandem Center, Actuation Type Pendant, Air Consumption - Maximum 12 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract
