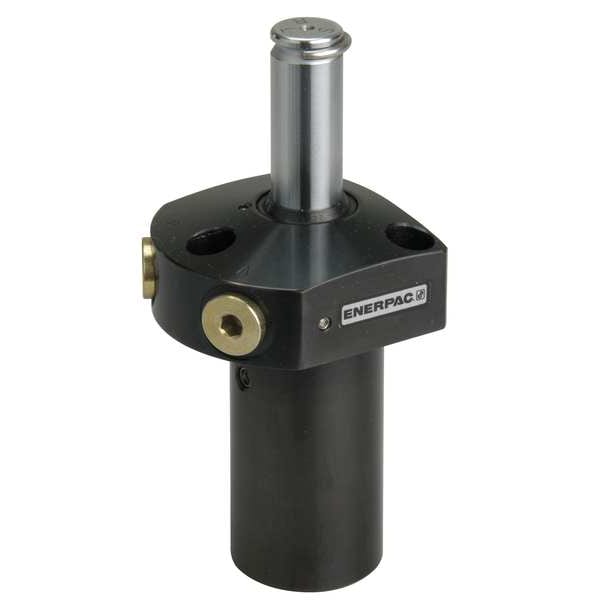

SULD51, 1250 lbs Force, Swing Clamp, Double-Acting, Left Turning, Upper Flange
Mfr # SULD51
Zoro # G2752784
product price: $724.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
1,250 lbf
Total Stroke
0.89 in
Clamping Stroke
0.39 in
Effective Area Clamped
0.28 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SULD51
Zoro #
G2752784
UPC #
662005231027
Country of Origin
United States
Dimensions
Outside Dia.
1.37 in
Mounting Hole Dia.
0.27 in
Port Size
#4 SAE
Bolt Size
1/4"-28
Extended Height
5.31 in
Min. Hole Depth
0.75 in
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 1,250 lbf, Total Stroke 0.89 in, Effective Area Clamped 0.28 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Series SU, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 0.59 sq in, Oil Capacity Clamped 0.25 cu in, Oil Capacity Unclamped 0.52 cu in, Max. Oil Flow 25 cu in/min, Pressure Range 500 to 5000 psi
