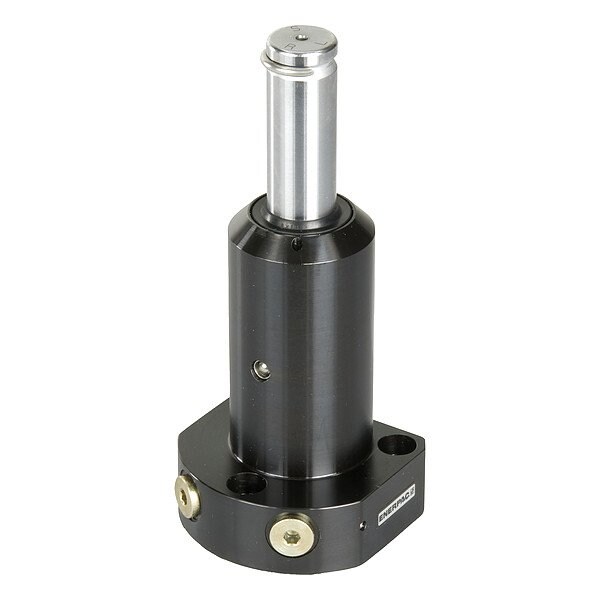

Swing Clamp
Mfr # SLRD352
Zoro # G915487696
product price: $1,644.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
33.8 kN
Total Stroke
32.6 mm
Clamping Stroke
16 mm
Effective Area Clamped
12.39 cu cm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SLRD352
Zoro #
G915487696
UPC #
0662005108466
Country of Origin
United States
Dimensions
Bolt Size
M10 x 1.25
Outside Dia.
79.65 mm
Port Size
G.250-19 BSPP
Extended Height
229.9 mm
Retracted Height
197.3 mm
Stroke Length
32 19/32 mm
Description
Swing Clamp, Swing, Body Material Steel, Mounting Style Threaded Body, Single Acting/Double Acting Double Acting, Turns Right, Clamping Force 33.8 kN, Total Stroke 32.6 mm, Effective Area Clamped 12.39 cu cm, Clamping Stroke 16 mm, Max. Pressure 350 bar, Swing Angle 90 Degrees , Port Size G.250-19 BSPP, Effective Area Unclamped 23.74 cu cm, Oil Capacity Clamped 37.2 cc, Oil Capacity Unclamped 71.38 cc, Max. Oil Flow 3.9 lpm, Pressure Range 35 to 350 bar, Extended Height 229.9 mm
