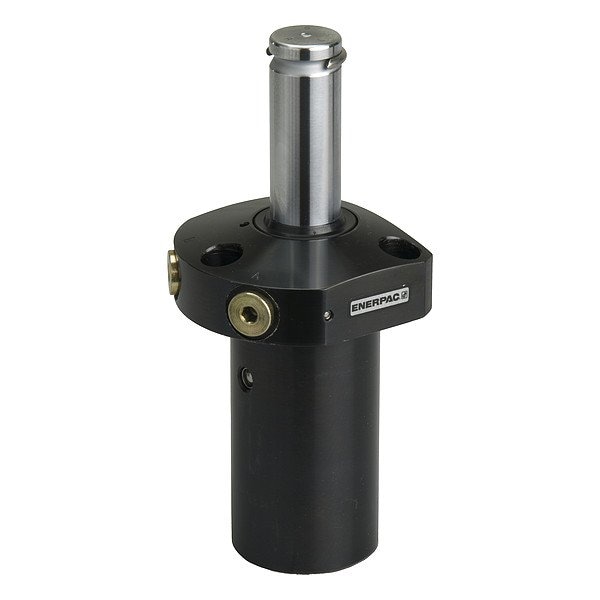

Swing Clamp
Mfr # SULD201
Zoro # G215487600
product price: $1,413.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
4,200 lbf
Total Stroke
1.16 in
Clamping Stroke
0.55 in
Effective Area Clamped
1.10 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SULD201
Zoro #
G215487600
UPC #
0662005231546
Country of Origin
United States
Dimensions
Mounting Hole Dia.
0.34 in
Bolt Size
0.312"-24
Port Size
#4 SAE
Extended Height
7.73 in
Outside Dia.
2.46 in
Mounting Hole Size
11/32 in
Flange Thickness
1 in
Retracted Height
6.57 in
Stroke Length
1 5/32 in
Flange Length
3 11/32 in
Mounting Hole Spacing - Width
2 5/32 in
Mounting Hole Spacing - Length
2 5/32 in
Flange Width
2 3/4 in
Description
Swing Clamp, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 4,200 lbf, Total Stroke 1.16 in, Effective Area Clamped 1.10 sq in, Clamping Stroke 0.55 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 2.35 sq in, Oil Capacity Clamped 1.22 cu in, Oil Capacity Unclamped 2.6 cu in, Max. Oil Flow 140 cu in/min, Pressure Range 500 to 5,000 psi, Extended Height 7.73 in
