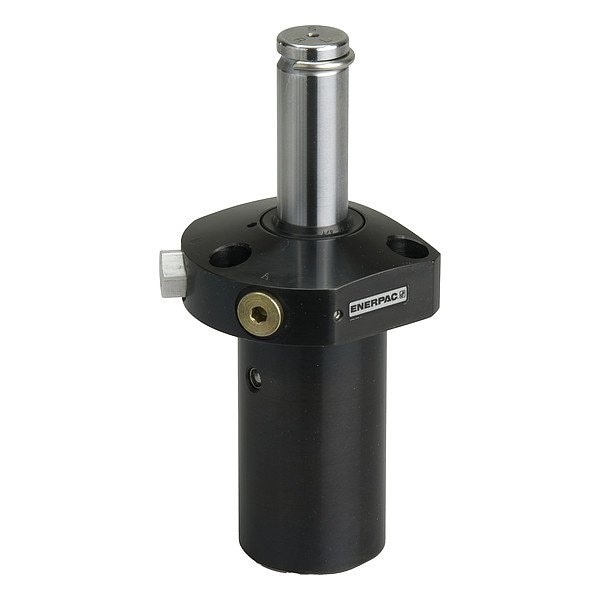

Swing Clamp
Mfr # SURS351
Zoro # G215487662
product price:Â
$
1,338.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Single Acting/Double Acting
Single Acting
Clamping Force
7,450 lbf
Total Stroke
1.28 in
Clamping Stroke
0.63 in
Effective Area Clamped
1.92 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SURS351
- Zoro #
- G215487662
- UPC #
- 0662005231614
- Country of Origin
- United States
- Item
- Swing Clamp
- Single Acting/Double Acting
- Single Acting
- Clamping Force
- 7,450 lbf
- Total Stroke
- 1.28 in
- Clamping Stroke
- 0.63 in
- Effective Area Clamped
- 1.92 sq in
- Turns
- Right
- Max. Pressure
- 5,000 psi
- Max. Oil Flow
- 240 cu in/min
- Pressure Range
- 500 to 5,000 psi
- Swing Angle
- 90 Degrees
- Oil Capacity Clamped
- 2.27 cu in
- Product Type
- Swing Clamp
- Cylinder Type
- Swing
- Body Material
- Steel
- Mounting Style
- Upper Flange
Description
Swing Clamp, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Single Acting, Turns Right, Clamping Force 7,450 lbf, Total Stroke 1.28 in, Effective Area Clamped 1.92 sq in, Clamping Stroke 0.63 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 2.27 cu in, Max. Oil Flow 240 cu in/min, Pressure Range 500 to 5,000 psi, Extended Height 9.81 in, Outside Dia. 3.02 in, Mounting Hole Dia. 0.43 in
