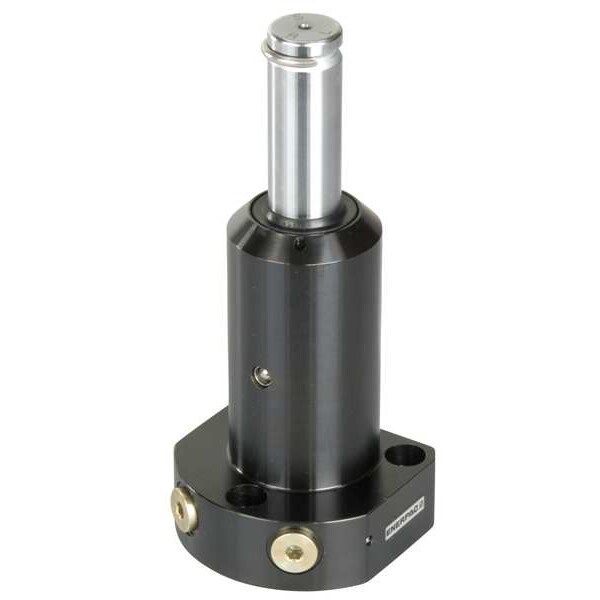

Swing Cylinder, Lower Flange, 2600 lb
Mfr # SLLD121
Zoro # G3090473
product price:Â $816.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
2,600 lbf
Total Stroke
1.1 in
Clamping Stroke
0.5 in
Effective Area Clamped
0.63 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
SLLD121
Zoro #
G3090473
UPC #
662005308330
Country of Origin
United States
Dimensions
Extended Height
6.75 in
Bolt Size
5/16"-24
Mounting Hole Dia.
0.35 in
Port Size
#4 SAE
Outside Dia.
1.88 in
Min. Hole Depth
0.88 in
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 2,600 lbf, Total Stroke 1.1 in, Effective Area Clamped 0.63 sq in, Clamping Stroke 0.5 in, Max. Pressure 5,000 psi, Series SLL, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 1.23 sq in, Oil Capacity Clamped 0.7 cu in, Oil Capacity Unclamped 1.4 cu in, Max. Oil Flow 100 cu in/min, Pressure Range 500 to 5000 psi
