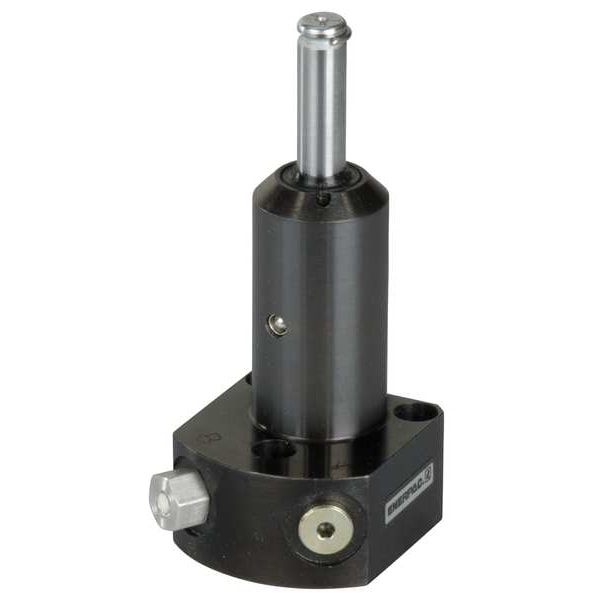

Swing Cylinder, Lower Flange, 475 lb
Mfr # SLLS21
Zoro # G1206667
product price: $648.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Single Acting
Clamping Force
475 lbf
Total Stroke
0.65 in
Clamping Stroke
0.32 in
Effective Area Clamped
0.12 sq in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SLLS21
Zoro #
G1206667
UPC #
662005308347
Country of Origin
United States
Dimensions
Min. Hole Depth
0.63 in
Mounting Hole Dia.
0.23 in
Bolt Size
#10-32
Port Size
#2 SAE
Extended Height
4.41 in
Outside Dia.
1.1 in
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Lower Flange, Single Acting/Double Acting Single Acting, Turns Left, Clamping Force 475 lbf, Total Stroke 0.65 in, Effective Area Clamped 0.12 sq in, Clamping Stroke 0.32 in, Max. Pressure 5,000 psi, Series SLL, Swing Angle 90 Degrees , Port Size #2 SAE, Oil Capacity Clamped 0.08 cu in, Max. Oil Flow 12 cu in/min, Pressure Range 500 to 5000 psi, Extended Height 4.41 in, Outside Dia. 1.1 in, Mounting Hole Dia. 0.23 in
